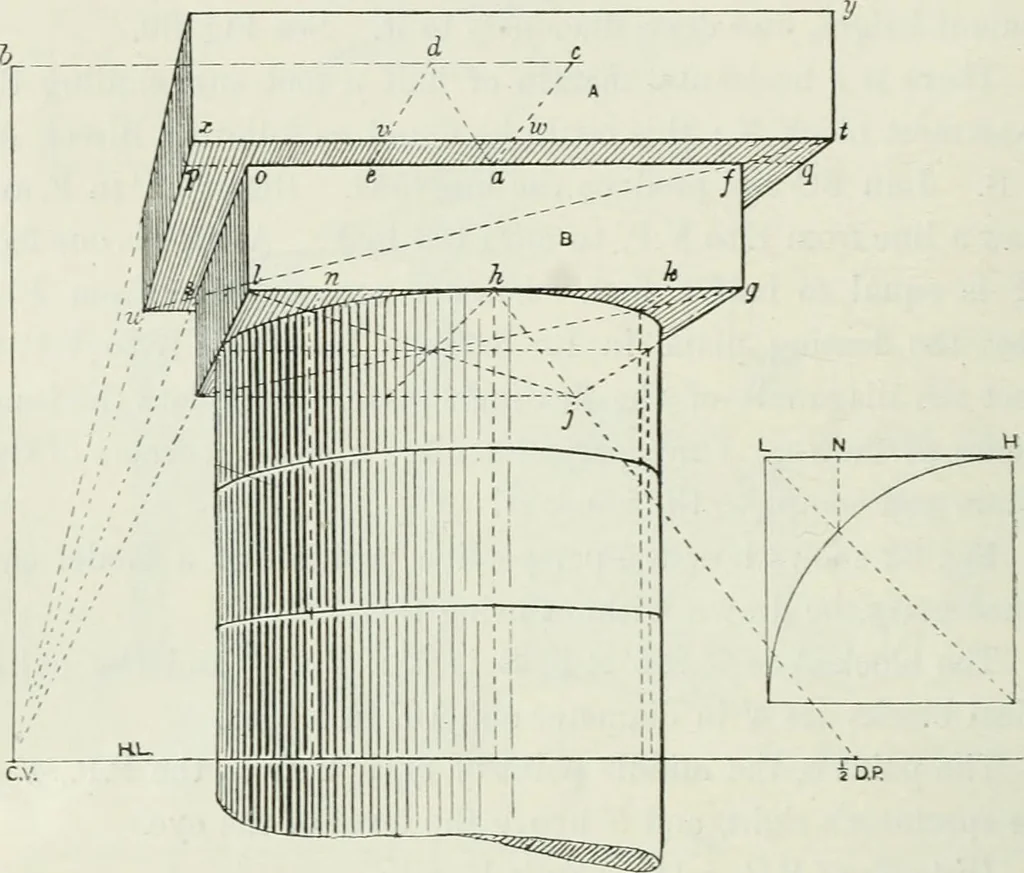

e the underside of B, and drawthe diagonals, etc., as shown. Witli radius equal to Id, draw a quadrant as a supplementaiy 112 COMPLETE PERSPECTIVE COURSE chap. drawing. Construct the square with diagonal, etc., as shown, andfind N. Set off gl and Ja, each equal to LX, and draw linesfrom Ic and / to… … Fig. 82 equal parts. iJraw fair curves througli the points thus found,as shown. The block A projects half a foot beyond the block B. Produceof, and set off/g* and op, each equal to half oifg, and draw linesfrom C.V. through 7* and q^. Draw the diagonal ,s/, and produceit to meet the lines through p…
