Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 186

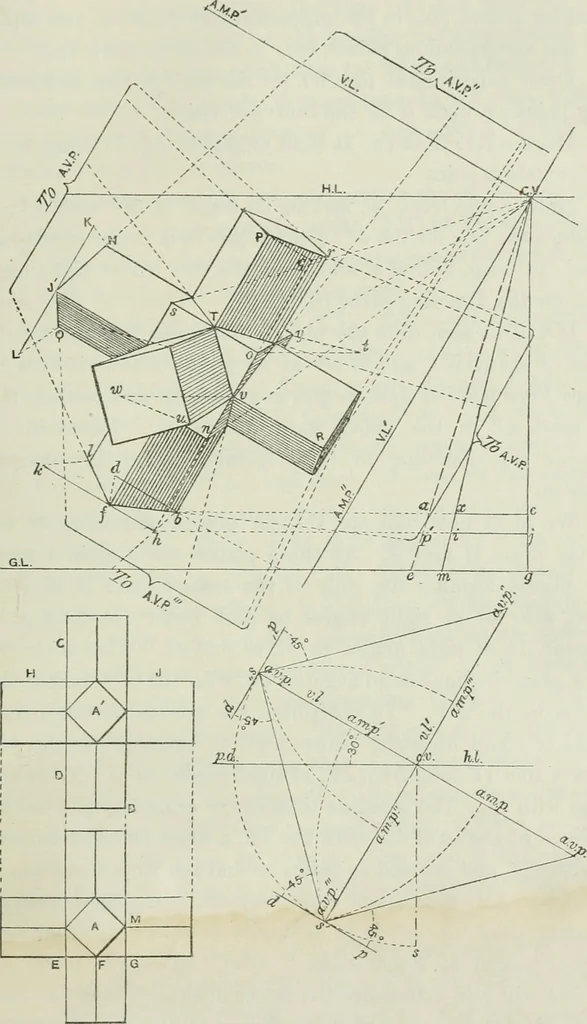

e of 30° to the left. The arms H andJ are to he parcdlel to the P.P. Distance of P.P. = 11. Height of cye = A.y. Sccde |-=1.Fig. 12:1 To show the working points to this scale would require asheet of paper about 11 square, so to overcome this difficulty wewill show how they are found in a… … Fig. 123 i64 COMPLETE PERSPECTIVE COURSE chap. construction. Italics are used for tlie names of the ditlerentworking points, etc., in the supplementary drawing, and capitalsfor the corresponding points, etc., in the larger drawing. Draw a horizontal line h.l. for the horizon line, and assumeany…
Perspective
