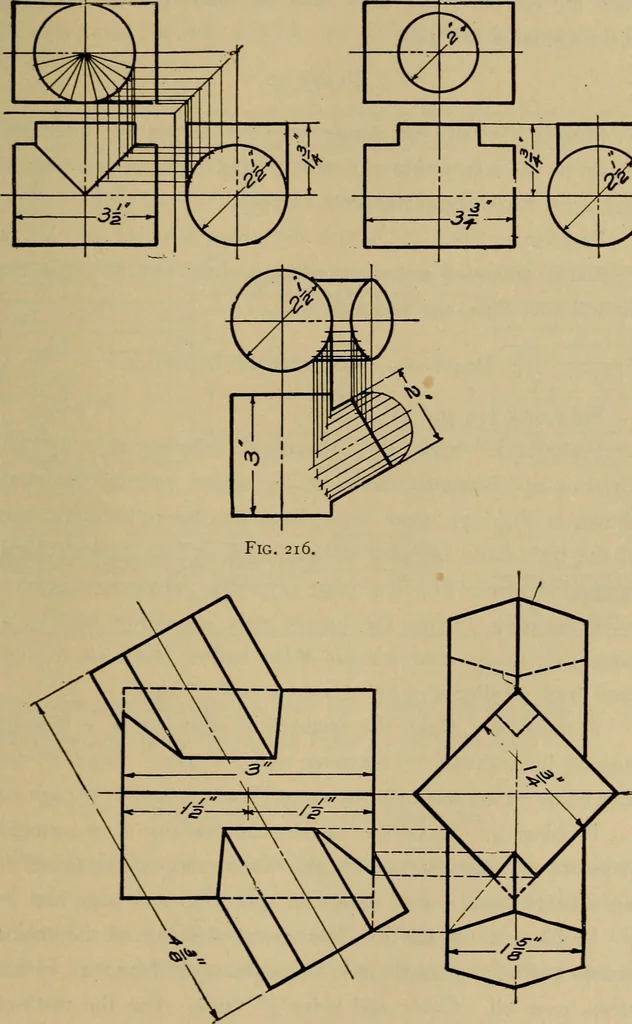

s. Problem 1. Draw three views of two right circular cylinders ofequal diameter, shown in Fig. 214, page 157, intersecting at rightangles to each other, Draw curve of intersection. See page 96. Problem 2. Make the drawing shown in Fig. 215, page 157,and draw curve of intersection. Problem 3. Make… … Fig. 217. 158 MECHANICAL DRAWING. sected by a hexagonal prism partly shown in elevation. Com-plete the elevation and draw also half end view. Total lengthof hexagonal prism 4§. Plate 20. Problems 1 and 2. Construct the curves of intersectionshown on the connecting-rod ends in Figs. 140 and 141,…
