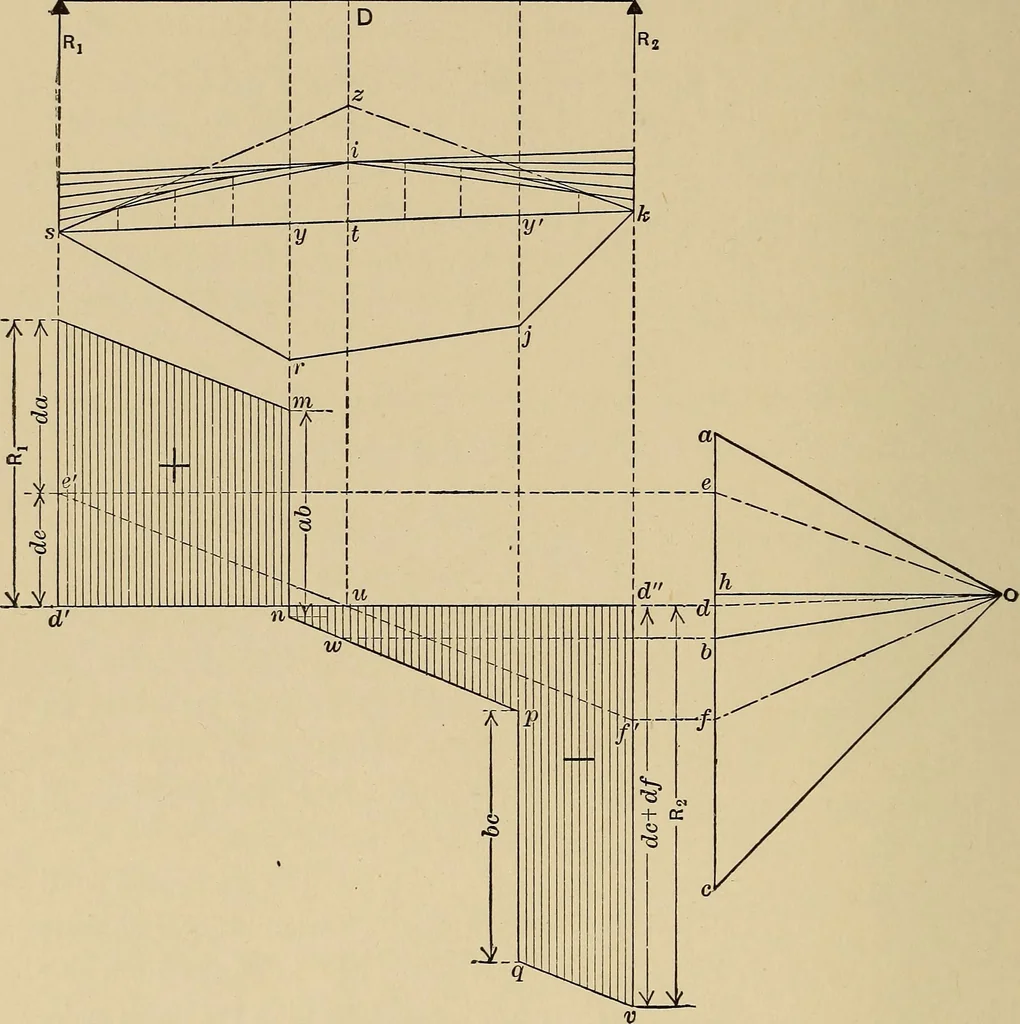

ly distributed loadof 400 pounds will be parabolic in form, and it will be convenientto construct its funicular on the closing line ks of the funicularof the concentrated loads. To do so we will take the same pole,0, as was used for the concentrated loads, and will consider thewhole of the… … Fig. 85. FUNICULAR POLYGON 129 200 pounds each to R2 and Ri. On each side of d in the loadline lay off ed and df, each one-half inch in length, to representthese additions to the support reactions. Draw the vectorsoe and of. From k and ^ draw parallels to oe and of respectively.They intersect at z.…
