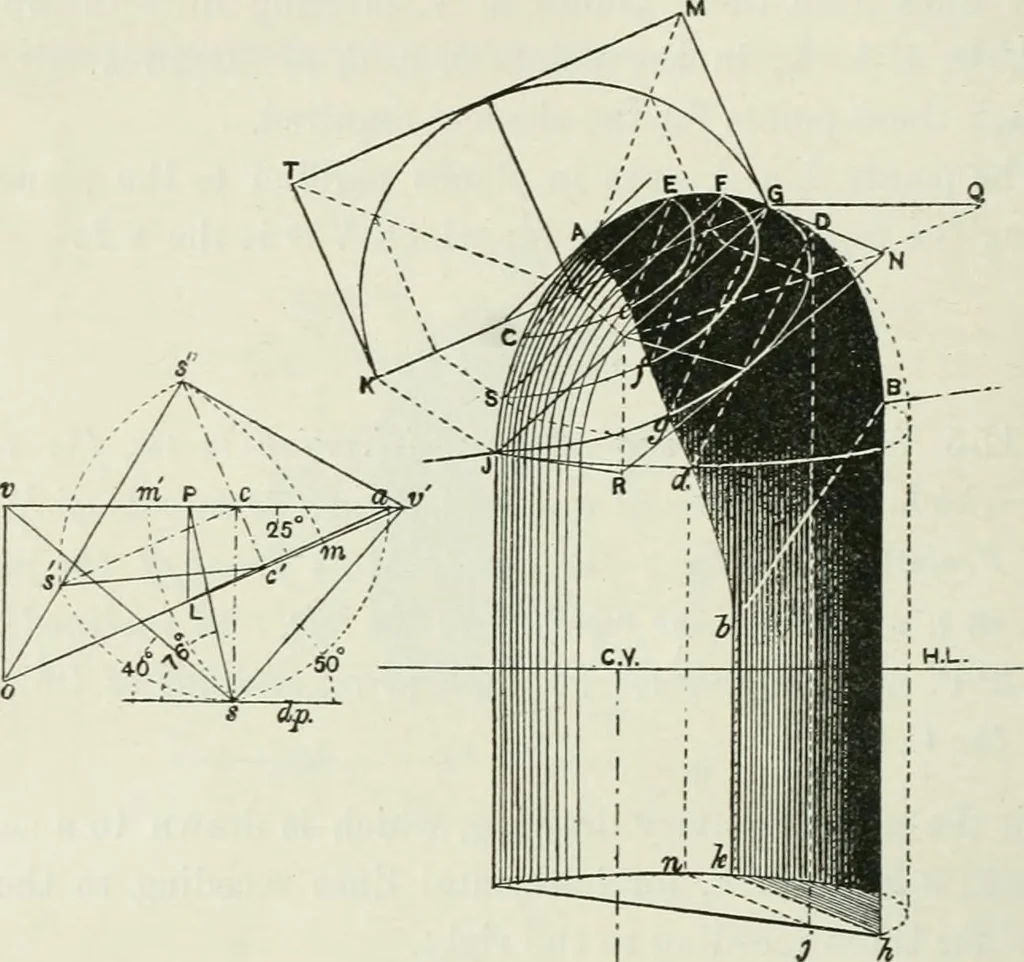

t the line cc produced in s. With o ascentre, and radius os, draw an arc to meet ov in rn, which isthe A.M.P. required. 2i8 COMPLETE PERSPECTIVE COURSE chap. Set off the distances between these points to eight timesthis scale in the larger drawing, commencing at CX. Draw from 0 a tangent to the… … Fig. 155 lines are the front edges of planes parallel to the plane of shade,which form sections through the top of the recess. As this isa quarter of a sphere, each of these sections is a semicircle.We will draw one of these semicircles as an example. Draw a line from G parallel to or. Draw a line…
