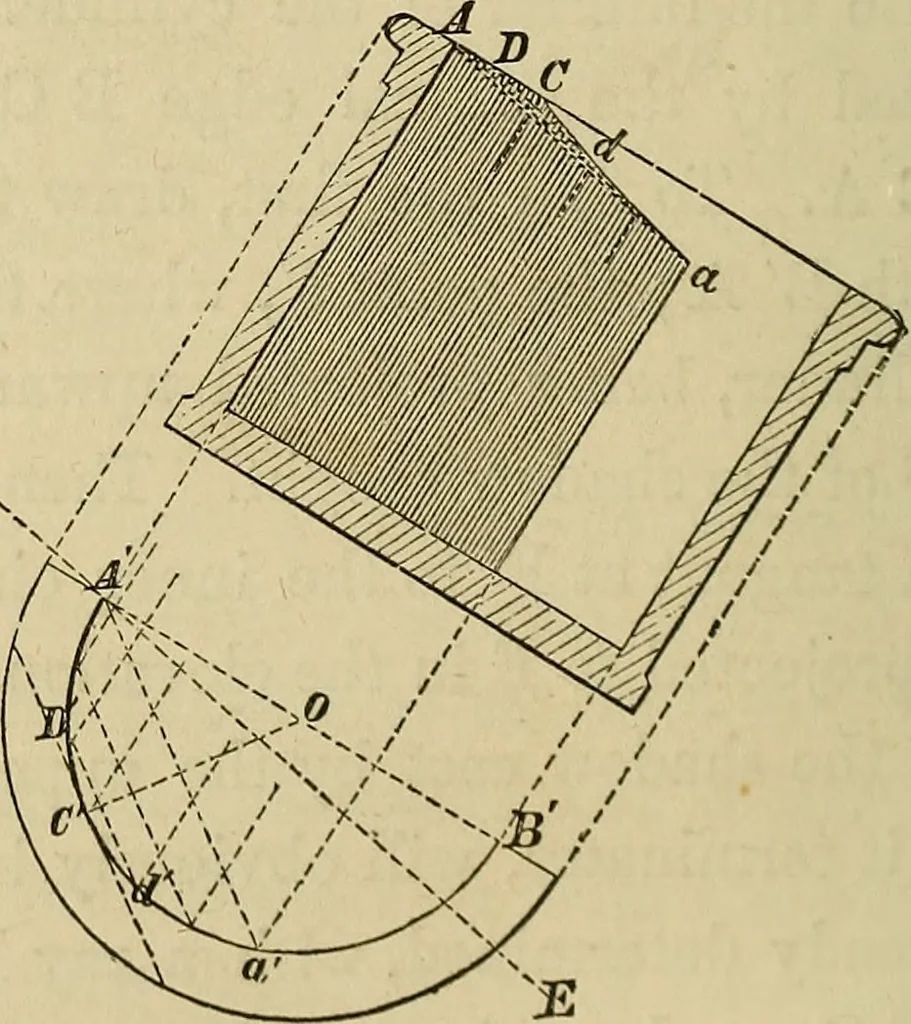

Fig/ 5. Fig. 6.-Let a cylinder in section to be set at an inclination to the horizon-tal plane. To find the outline of the shadow cast into its interior, describeupon the prolongation of the axis of the cylinder a semicircle A a B,representing its interior surface, and tlien, in any convenient part…
