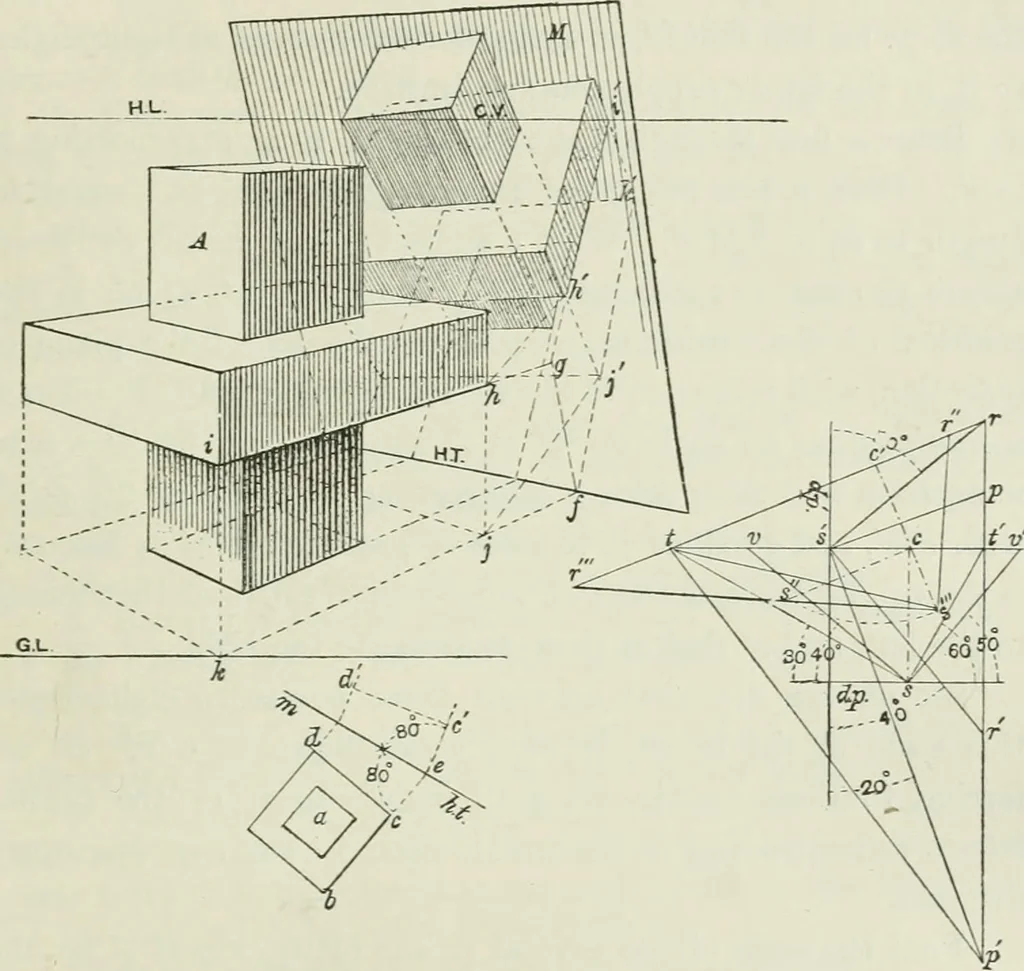

le of 70° with the vertical. Set off theseangles at s with d.p, and produce them to meet the verticalline through f in the points p) and p. Thenp is the a.v.i?. for XI SCIOGRAPHV OR THE PROJECTION OF SHADOWS 231 lines at right angles to the plane J/, andy/ for lines parallel \oM and at right angles… … Fig. 163 therefore the reflection of the G.P. must also be inclined at anangle of 70° with M. Consequently the reflected G.P. will forman angle of 140^ with the G.P. (70° + 70° = 140°), i.e. anangle of 50° with the vertical (140 — 90° = 50°), and a line atright angles to the reflected G.P. will…
