Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 95

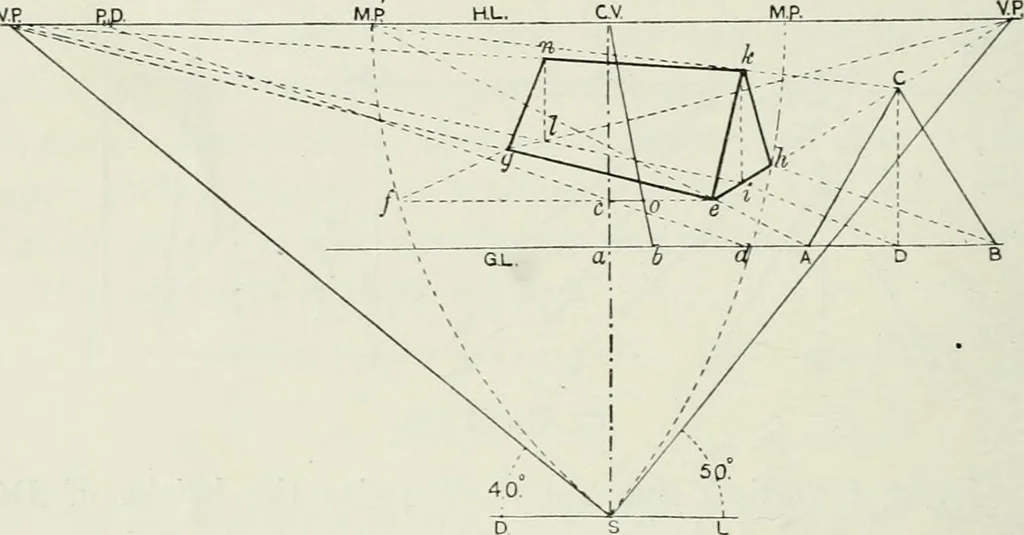

P.P. and 3 tothe spectator s rigid. Distance of P.P. = 11. Height of eye = o. Scale ^ = 1.Pig. 59. Find all the necessary working points and lines, as well asthe nearest corner (f) of the object, as in Prob. 12. 72 COMPLETE TERSPECTIVE COURSE CHAP, Draw c to each V.P. Draw a horizontal line through… … Fig. 59 ABC with sides 4 long. Draw the perpendicular CD, and joinA, D, and B, with M.P., by lines meeting the right-hand recedingline from e in i and li. Draw a line from C also to ]\1.P., meeting a vertical line oni in 7t. Join he and Jili. Draw a line from (j to Y.P/ to meet a line drawn from…
Perspective
