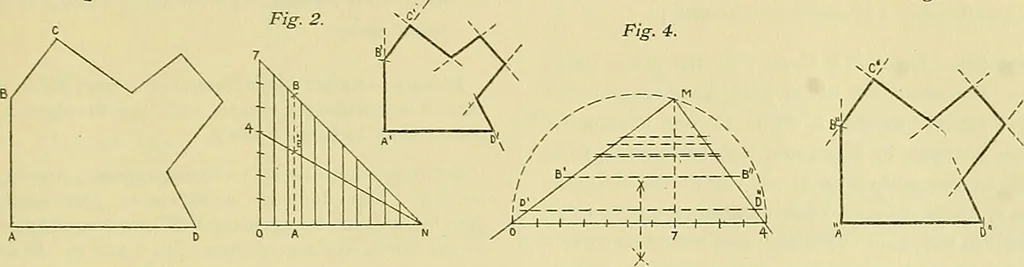

unit the same number of squares as in Fig. 7. Transferthe points of intersection of the irregular outline with the sidesof the squares, in reducing their distances from the vertices ofthe squares by scale Fig. 8, and transfer into Fig. 9. Connectthese points by a free-hand Une, which is the…
