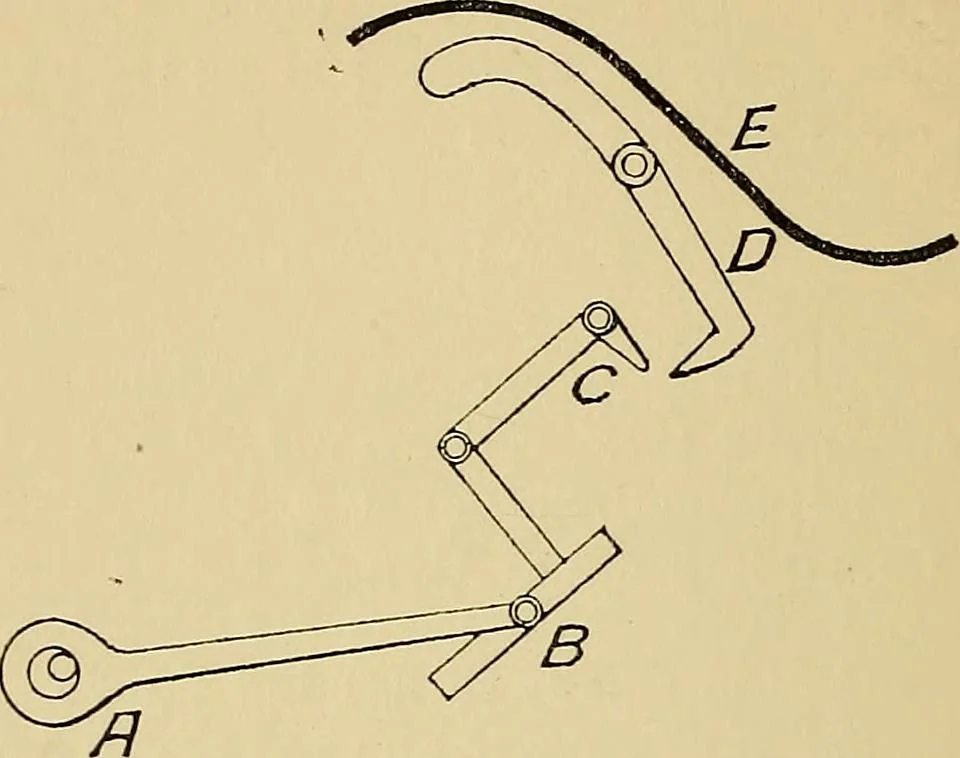

r two longitudinally by a spiral spring. In itsmovement it takes along the stop-rod, and thus stops themachine by placing the belt upon the loose pulley. Themachine cannot then be started again unless the defect isfirst remedied, if the parts are in proper working order. These motions differ in… … Fig. io. any instance. There is an eccentric at A driven from thefront roller. By its revolution it imparts a horizontalmotion to the rod A B after the style of the eccentric usedon a steam engine for opening and closing the port holes.At B the stud in the shaft rests in the slot of the bell…
