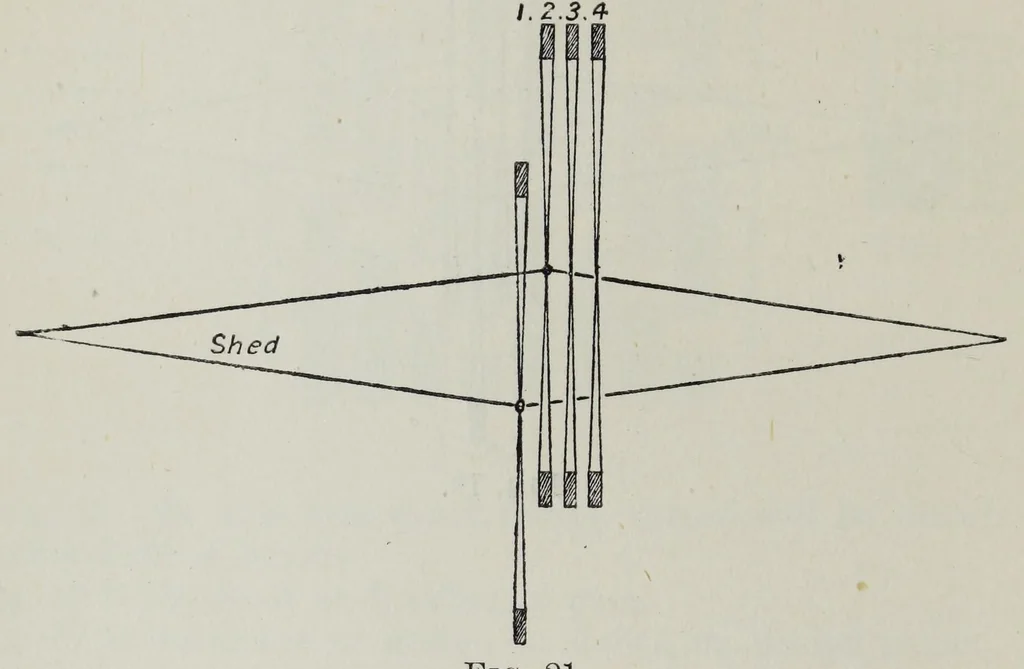

THE COTTON WEAVER'S HANDBOOK. 14 The working of the healds is as foHows : Fig. 18. First pick. Nos. 1, 2, 3 healds up. No. 4 down 19. Second pick. „ 1, 2, 4 „ „ „ .3 „ „ 20, Third „ „ 1,3,4 „ „ „ 2 „ „ 21. Fourth „ „ 2, 3, 4 „ „ „ 1 „ Three-quarters of the warp threads in this case float on the /.… … Fig. 21. surface of the cloth, and the remaining quarter is weft. This would be called a three and one warp twill. If the marks in Fig. 17 are taken to represent weft, and the Fig. 22. Fig. 23. blanks to represent warp, we obtain a weft twill as shown in Fig. 22 in exaggerated plan weave, and Fig.…
