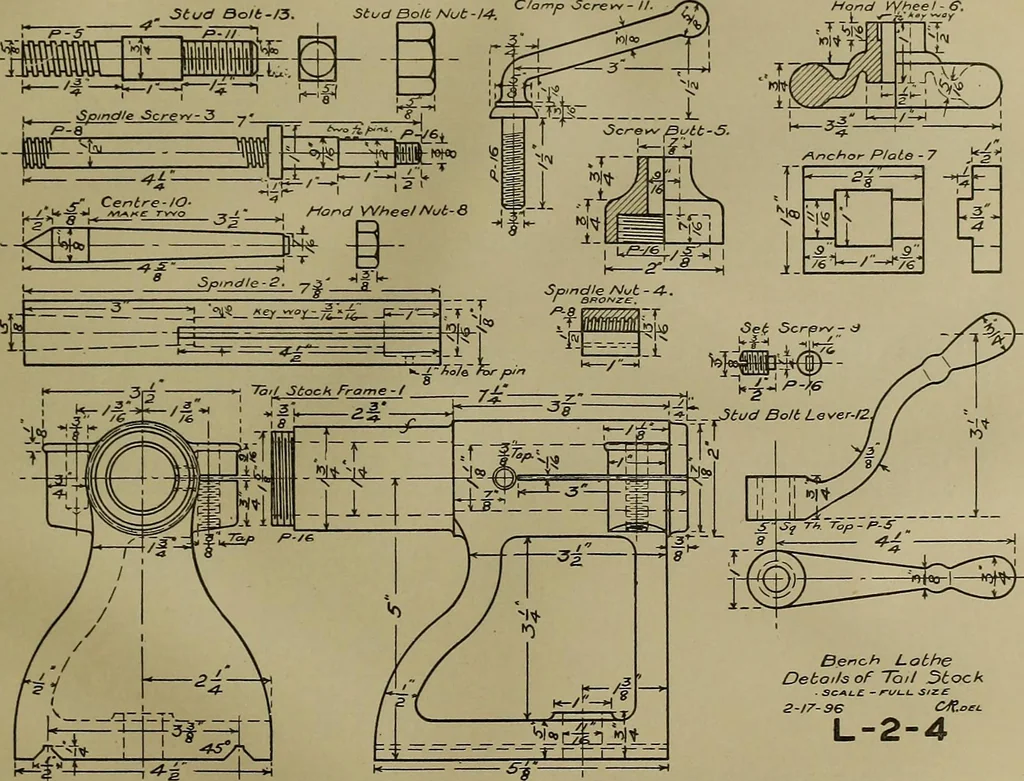

hcase the height alone is given. This would indicatethat the nuts are standard, and the height of the nutequals the diameter of the bolt. 1 herefore, the tapsof the stud bolt nut and the hand wheel nut are ■|-inches and |-inches respectively. Another methodof indicating a tap is given on the tail… … k^fM= Bench LatheDetails oF Toil 5tock ■ SCAL£ - r-Vt-L. StZ£ 2-17-96 OK.eci. ;8 COURSE IN MECHANICAL DRA WING. SHEET XXIX. Bench Lathe — Details of Bed. This sheet is drawn to half-scale. As the structureof the bed is the same throughout a considerablelength, space may be saved by breaking out a…
