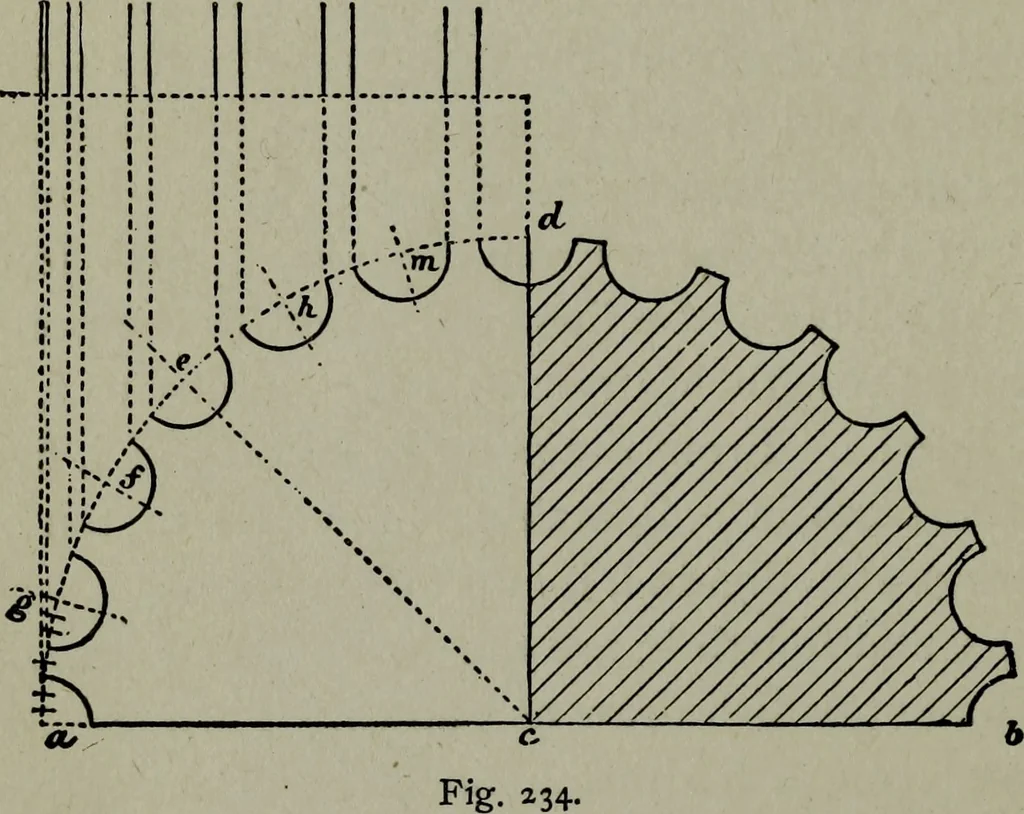

inwhich all the centers and center lines are given.Rulds for describing the ellipse were given inprevious pages, that should the studentexperience any difficulty in describing the ^IB ARCHITECTURAL DRAWING SELI^ TAtfGHT elliptical curves, he may refer to those pages forassistance. SOMETHING ON… … enough for our purpose, to be able to drawthem, and to give to each order its own pro-portion and arrangement. Before we can dothis, however, it will be necessary for us to beable to lay off a section of a column, showing ARCHITECTURAL DRAWING SELF TAUGHT 219 the position of flutes and fillets in…
