Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)
Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 92

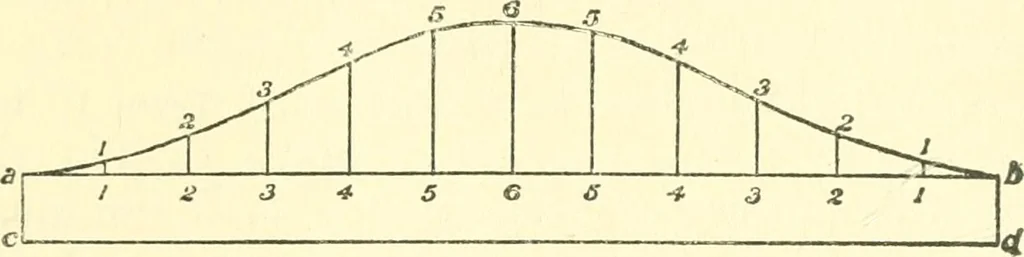

oints draw perpendiculars, making i i equalto I I and 2 2 equal to 2 2, etc., Fig, 118; through thepoints thus found draw the curve a b; make a c and b dequal to c a, Fig. 118, and draw c d parallel to a b; then^123, etc., b d CIS the plan of the soffit or veneering. FOR CARPENTERS AND MECHANICS.… … Fig. J19
Carpentry
