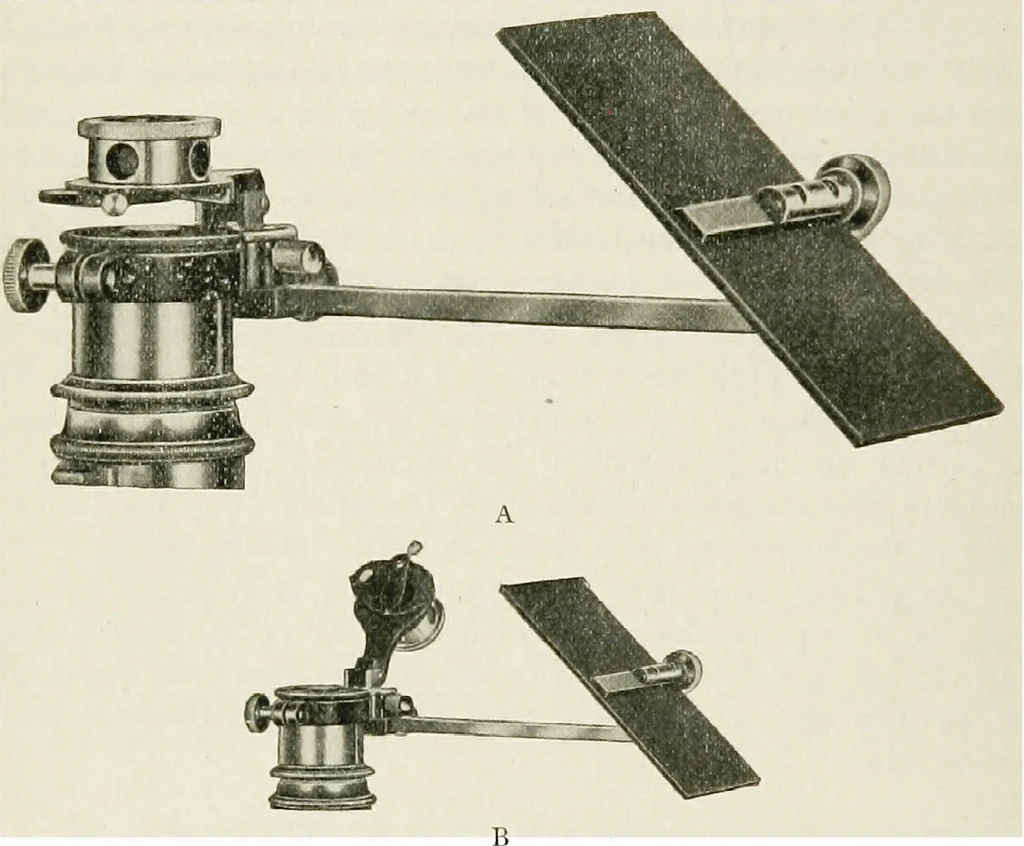

s, the image was drawn at a magnificationof 500 diameters. 152 DRA WING WITH THE MICROSCOPE [CH. V If the micrometer scale is added to every drawing, there is noneed of troubling ones self about the exact distance at which thedrawing is made, convenience may settle that, as the special… … Fig. 132 A. B. Abbe Camera Lucida. (A.) In this figure the cameralucida is in position for drawing. The ring or collar supporting the mirroris graduated so thai the angle of the mirror may be exactly determined.Smoked glasses serve to modify the light from the microscope or from thedrawing surface…
