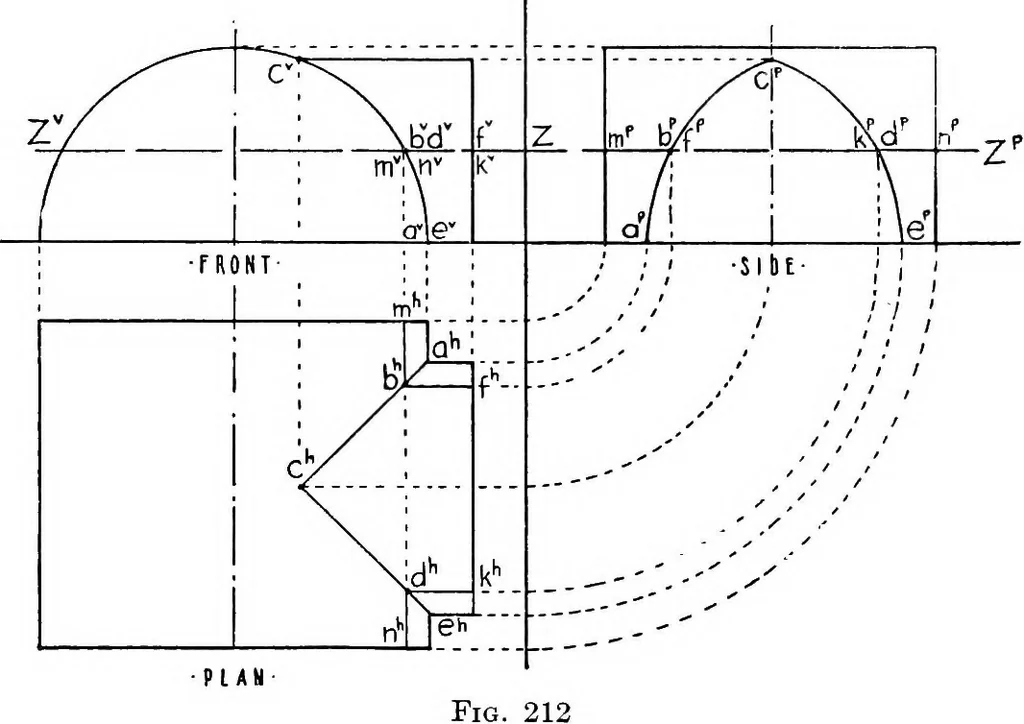

f straight lines. 230 DESCRIPTIVE GEOMETRY [XI, § 193 II. Given one Vault and its Line or Intersection withAnother Vault, to Determine the Cross-section of theSecond Vault. In Fig. 212, the intersecting vaults are shownas without thickness. Let the plan and the front elevationbe given in full, and… … jected to the side elevation, locate the points 6 and dP whichare two of the points required to establish the curve a^h^c^i^e^. 194. Mitering of Mouldings. A moulding is a combinationof cylindrical and plane surfaces. Its right section or -profileis therefore a combination of straight and curved…
