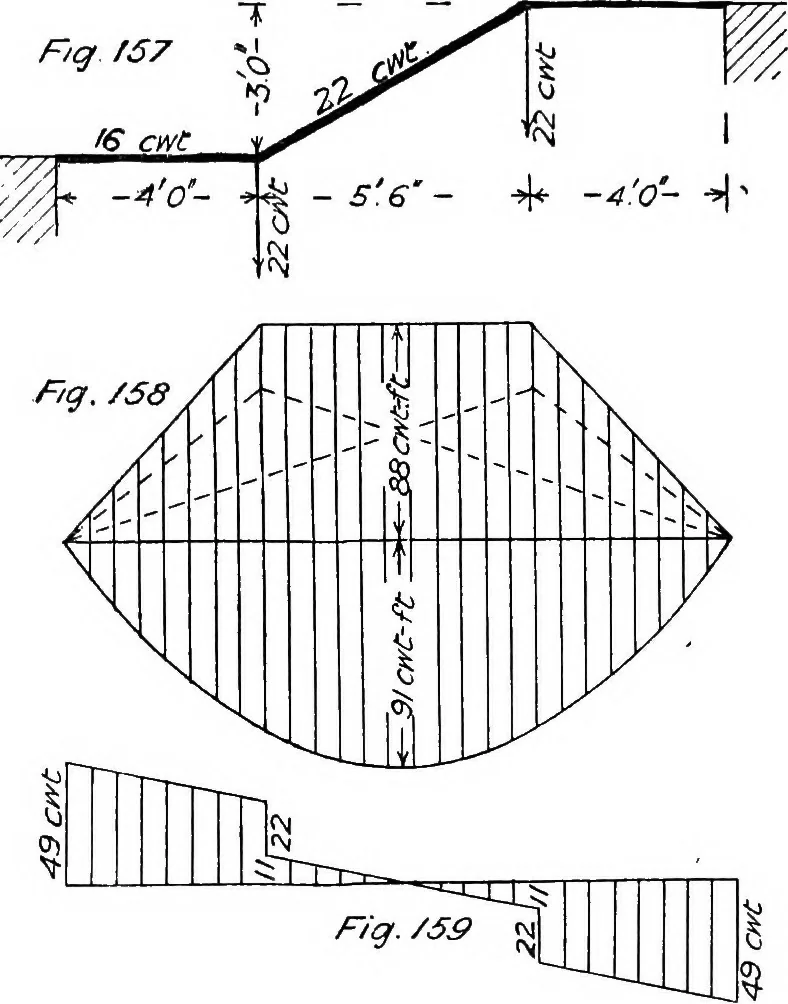

2J in. Findthe length and thickness of the plates when the angle irons are equivalent to i-in.plate. Half-cover length may be taken as 12 in. For answer, see Fig. 156. LEOTUEB YIII Bent Girders for Staircases—Cambered Girders—Cast Iron Cantilever—Gallery Cantilevers—Painters Hangers. Stone… … same as for a straight girder. Fig. 157 shows the frame diagram ofone of a pair of bent girders carrying two square landings and a shortflight of steps, together with the top end of a lower flight and thebottom end of an upper flight. Fig. 158 shows the bending-momentdiagram, and Fig. 159 thie…
