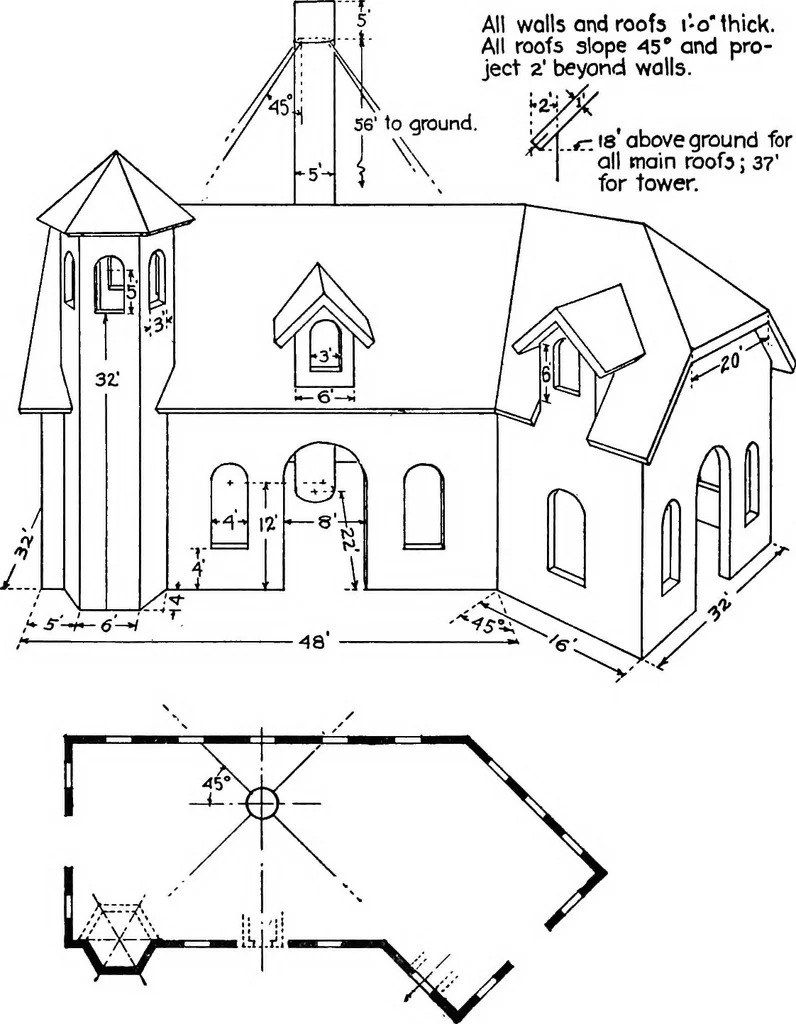

awings. Particular attention should be givento points A and B, in working out the roof. 2. Cast sun shadows on the plan and front elevation.^n-O-? 1 c- f JIoTe: All edves pn( All roofs e^\h )jeci I-s ^^ i: N W—O—E S „, 1 16 r- •■ :.—; :...J ^ WEIT tLlV. IHOHT tLEiflTlflN I lAJT E EV. I ■ SICT- X-X.… … Fig. 261 APPENDIX 299 EXERCISE SHEET LXXX (§188) Use a large sheet, placed vertically. Figure 261 shows a building with a tall chimney. Draw the planand elevation at | scale. Four guy wires are to be attached to thestack. They shall be in planes perpendicular to H and at 45° with V,and passing…
