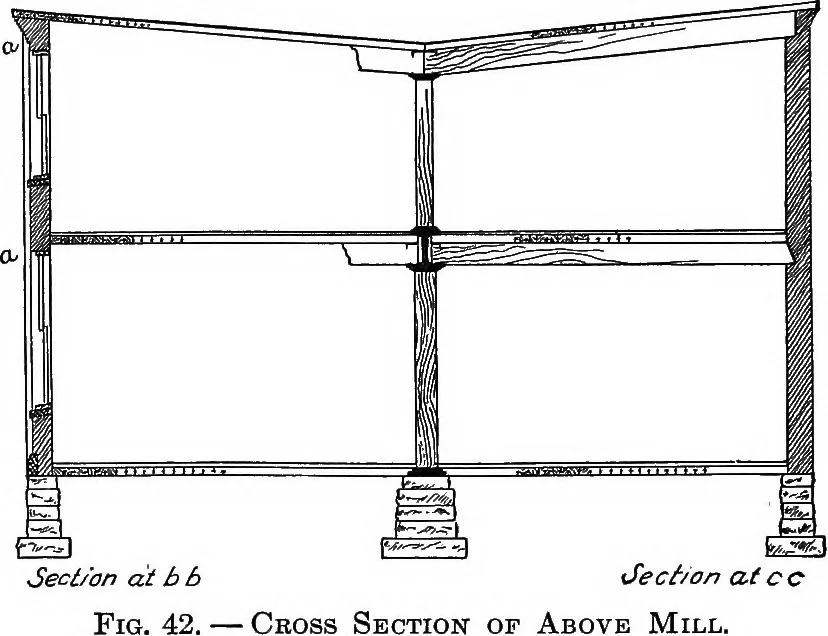

mpanying illustrations.Fig. 41 shows the floor plan of one end of a small factorybuilding, and the horizontal section of the walls and the 46 CONSTRUCTIVE CARPENTRY posts. It will be seen that the building can be made of anywidth or length, and that the posts should be arranged inregular rows, or… … iSecbon at cc-Cross Section of Above Mill. for the under flooring, in this way allowing each piece toland upon three floor timbers. Fig. 42, a, shows the cross section of Fig. 41 at b b, inwhich it will be seen that the windows extend above theline upon the wall upon which the floor timbers rest;c…
