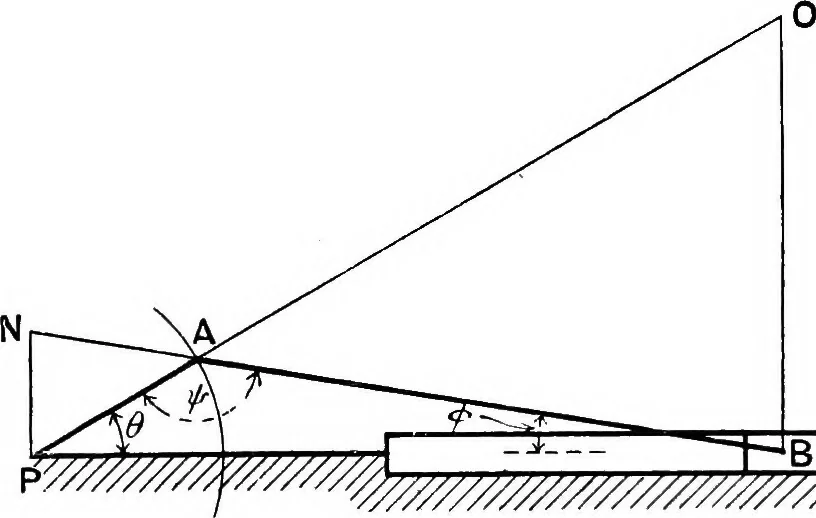

CHANISM. P, whilst the block B moves to and fro in a straight line. Theinstantaneous centre 0 of the third moving link AB is where PAproduced meets the line through B drawn perpendicularly to thestroke. If v., v^ represent the linear velocities of the crank pinand piston respectively— «^. _ OB _ PN… … mk^/y/ky/////^^^^ Fia. 1G8. the length PN will represent, on the same scale, the velocity ofthe piston.^ This is the same result as that obtained in § 107, inwhich it was obtained as a particular case of the general problem.Again, in this mechanism there are three turning pairs, namelyat P, A, and…
