Dunkerley, Stanley, 1870- · London, New York [etc.] Longmans, Green · leaf 203

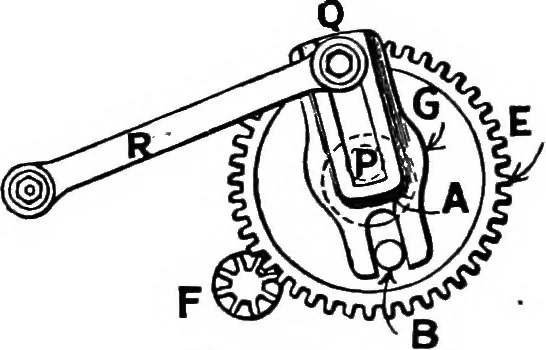

Fio. 200. Fio. 201. arm G, which lies flat on the face of E. From the wheel E a fixedpin, B, projects and works in the slotted arm. The connecting-rod QR is attached to the slotted arm by means of a T-headedbolt, which can be secured in any position in the slot. With acounter-clockwise rotation of…
Machinery, Kinematics of
