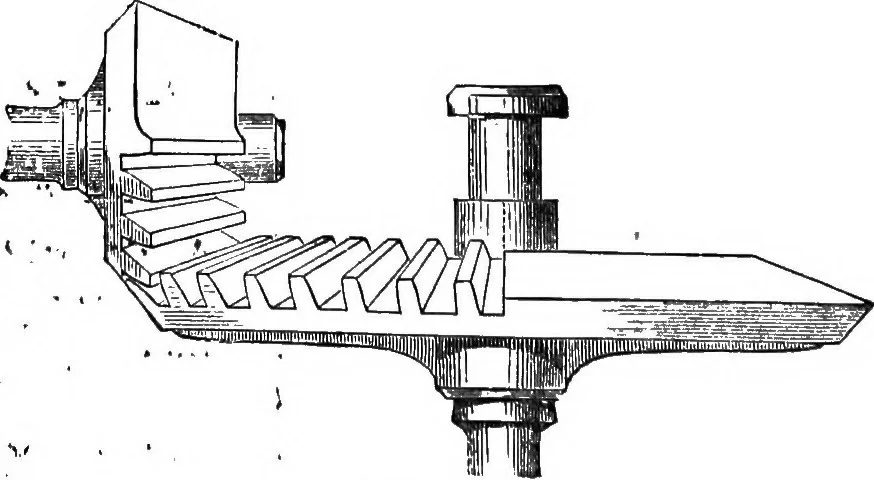

Fto, 345. CH, CJ in exactly the same way as for spur wheels, treatingthese arcs as if they were the pitch circles; and, having plotted \ \A ...t ... •■ … Fio. 346. them imagine the circles CH, CJ again wrapped on their respective TOOTHED CIRCULAR WHEELS. 309 cones DGF and EGG, and on these cones—by purely geometricalmeans—trace the teeth whose developed shape has been obtained.These may be taken to be the traces of the bevel teeth on theconical…
