Experiments on the rate of heat transfer from a hot gas to a cooler metallic surface (1916)
Babcock & Wilcox Company · New York, The Babcock & Wilcox co · leaf 22

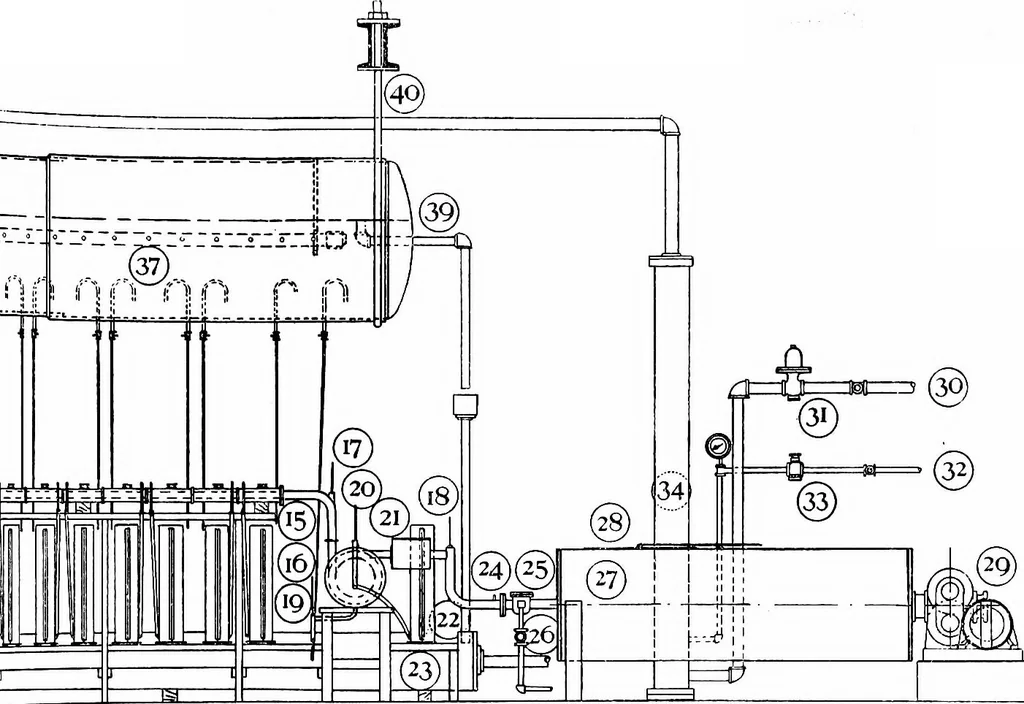

FIG. 3 GENERAL ARRANGEMENT OF EXPI COMPRESSED AIR RESERVOIR ENTERING AIR SUPPLY AIR LEAVING RESERVOIR FOSTER PRESSURE REGULATOR ILLUMINATING GAS SUPPLY MERCURY U TUBE GAS BURNER FURNACE COOLING WATER INLET COOLING WATER OUTLET 11 HEAT TRANSFER TUBE 12 WATER INLETS TO JACKETS 13 WATER OUTLETS TO… … ERIMENTAL HEAT TRANSFER APPARATUS 21 EXPANSION CHAMBER 31 22 MEASURING TANK FOR COOLER 32 23 WATER TROUGH 33 24 CONNECTION FOR GAS SAMPLE 3426 DEW POINT APPARATUS 35 26 WATER SUPPLY FOR DEW BOX 36 27 EQUALIZING CHAMBER 37 28 SLOT FOR CONTROLLING DRAFT 38 29 GAS EXHAUSTER 39 30 COLD WATER SUPPLY Vt…
Heat
