Thomälen, Adolf, 1865-, Thomälen Adolf. Kurzes Lehrbuch der Electrotechnik. English · London, E. Arnold · leaf 305

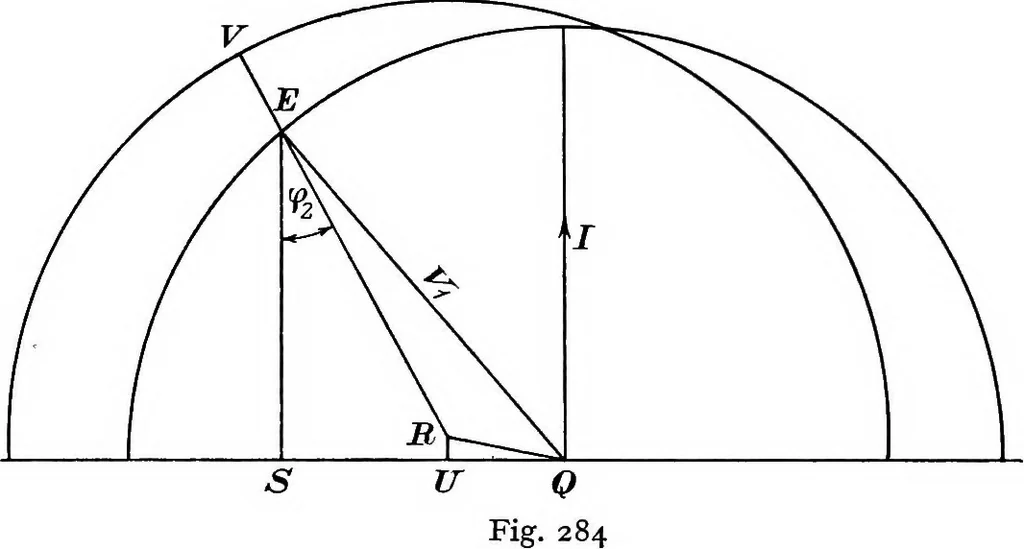

ressure is then directly equal to QR. Theresistances are easily measured and the ohmic pressure drop RU calculatedfrom them. The triangle QRU can then be drawn and the effect of magnetic leakagedetermined. We can now construct Kapps transformer diagram for constant currentbut variable external… … Q, and the other with the centre R. For any given power-factor <f)^ in theexternal secondary circuit, RE gives the secondary terminal pressure, orrather, its primary equivalent, while QE or i?F is equal to the constant F^.The difference between them is EV, which gives the fall of secondary…
Electrical engineering
