Reeve, Sidney A. (Sidney Armor), 1866-1941 · New York, London, The Macmillan Company · leaf 178

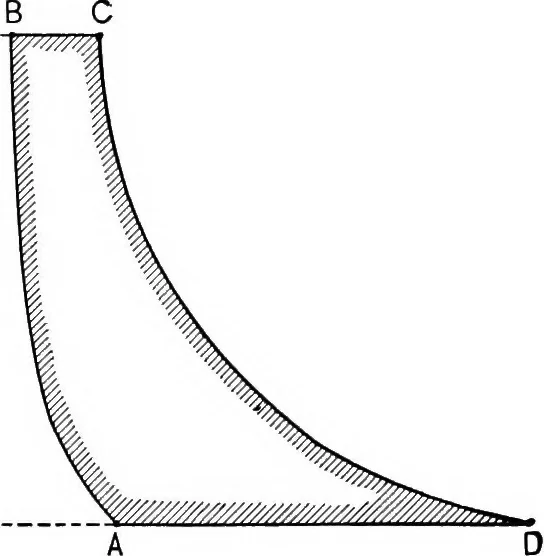

rmodynamically the Ericsson bearssomewhat the same relation to the Stirling that the Joule THE HOT-AIR ENGINES 161 does to the Otto, except that the efficiencies of the twohot-air engines are the same, whereas those of the twogas-engines are not. Indeed, the diagram of the Jouleengine, Fig. 23,… … Fig. 30 toward W at the temperature Tv and if the cylinder C beimagined as jacketed with cold water and the cylinder Was surrounded with fire; for the working-cylinders of theEricsson engines were actually hung over furnaces, muchin similitude to huge camp-kettles. Another differencebetween the two…
Thermodynamics · Heat-engines
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
