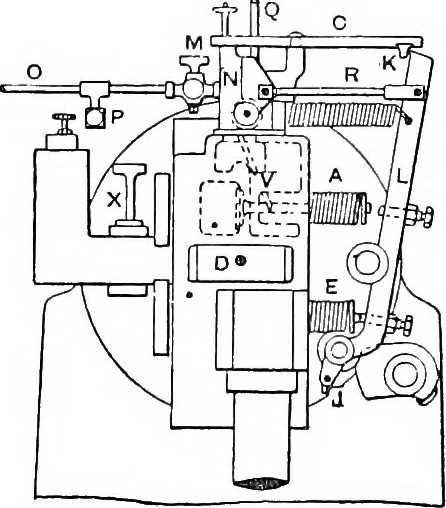

own at V. Here it becomes vaporised bythe high temperature maintained by an oil lamp and anto-matic air blast. The lever L is operated by a cam on theside shaft, and rocks upon a pin fixed in the boss E. Thelower end of the lever opens the exhaust valve when pressedinwards against the tension of… … Fio 147. —Arrangement of Valves and Levers in Wells Oil Engine. on the lever L. By this ingenious arrangement all thevalves are controlled by the one lever. The governing is effected by the horizontal link C. Thislink is balanced so that its position of equilibrium is suchthat the upper end of the…
