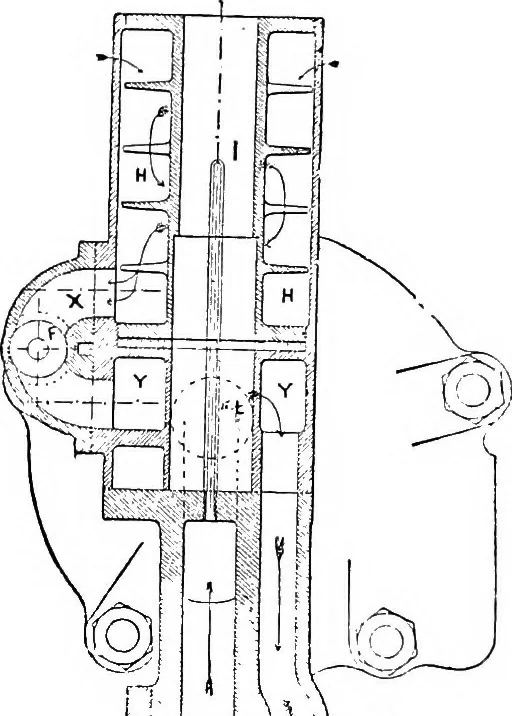

r I.H.P. hour—pints 0-662 0-651 O-ijr.7 Do. do. pounds 0-656 0-643 0-948 29. Oil per B.H.P. hour—pints 0-823 0-937 Do. do. pounds 0-815 0-928 326 THE BKIXANNIA OIL EXGINK The Britannia Companys Engine is the invention ofMr. Roots. Fig. 159 shows a section through the vaporiserof the Britannia oil… … , rT!;TfVO S^ Fig. 159.—Section through the Vaporiser of the Britannia Oil Engine.The arrows show the direction of flow of the air. the ignition tube. During the outstroke of the piston theair is sucked from H, through the elbow at X, to Y, and sopasses into the cylinder through the valve A V. As…
