Higbee, F. G · New York, John Wiley & Sons · leaf 30

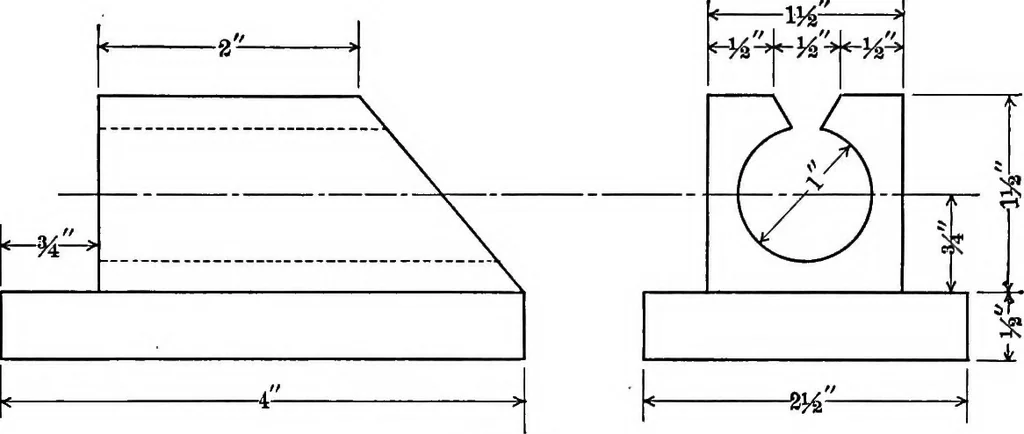

he center of one 6 edgeof the floor opening. Draw three views of the hopper. 16. Draw the plan and elevation and find the right end view of theobject shown in Fig. 16. 17. Draw the plan and elevation and find the left end view of the objectshown in Fig. 17. 18. Draw the two given views and find the… … Fig. 20.
