Classroom lecture notes, automotive starting, lighting and ignition, with diagrams (1918)

Fryer, Roy Charles, 1888- · New York, J. Wiley & Sons, Inc.; [etc., etc.] · leaf 170

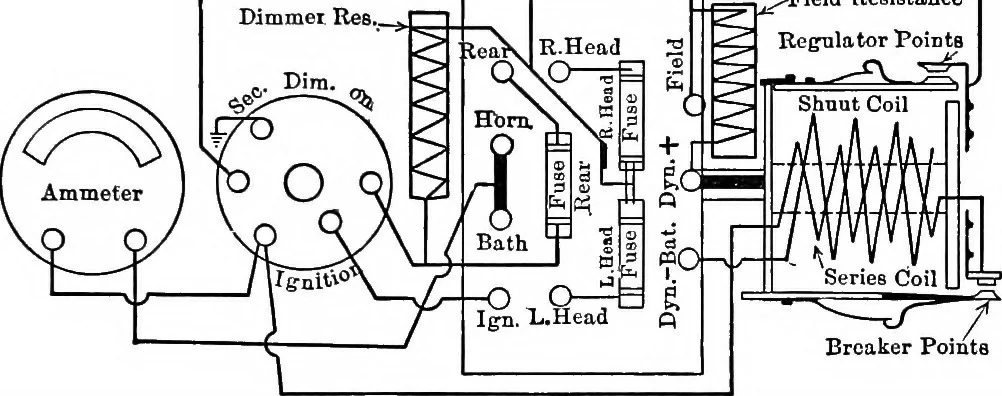

An illustration from Classroom lecture notes, automotive starting, lighting and ignition, with diagrams, 1918, leaf 170 — \ To startingMotor Switch. A ToFiddon Eegulator Simms-Huff Internal Connections. Lighting Generator and StartingMotor. Gen. 6 Volts. Motor 12 Volts. DIAGRAMS 159 … ^Field KeBistanceRegulator fointa ^ ^ Breaker Points Dash Panel. Switch, Ammeter, Regulator. For Simms-Huff Generator.Generator Diagram Page 158. Field. Eesistance BreakerPointy nte Ammmhim
