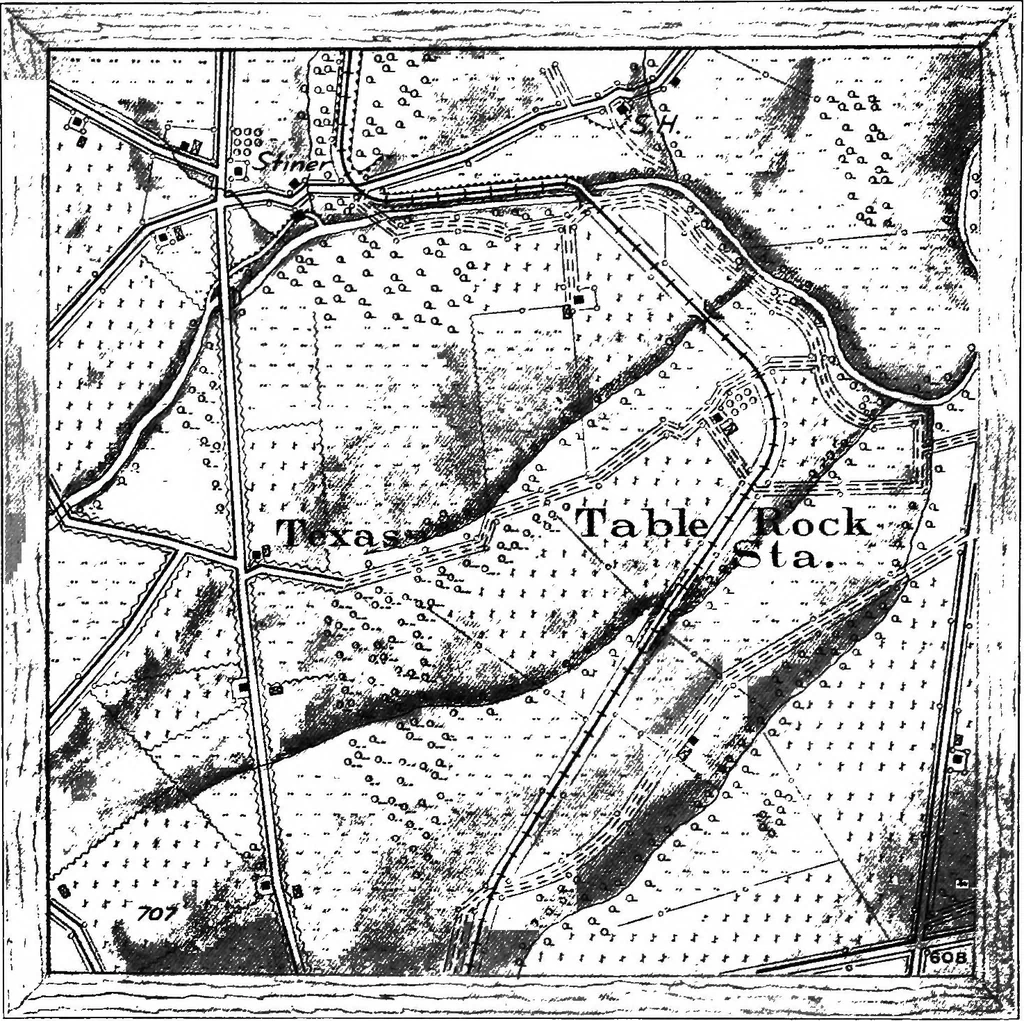

Fia. 9 would be below the contour just traced. Take theremainder of the sheet of wax and place it upon the fease-established in the other square. Refill.the square fromwhich the wax has just been removed, roll as before. 40 MiuTAKT Sketching and trace the next heavy contour. Continue this… … Fig. 10 Next, slope off abrupt surfaces between the heavy contoursby moulding in small pieces of wax by hand, and the map isthen completed in so far as the reUef is concerned. Next, all of the natural and artificial features of the terrainare represented by indentations in the wax. This is easily…
