Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 103

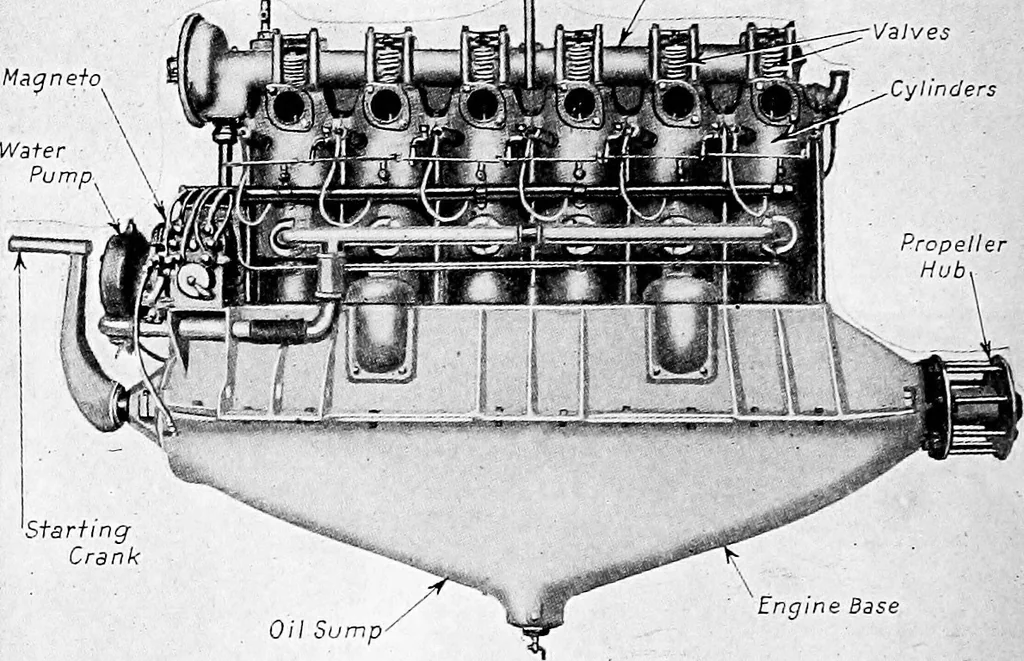

tself into having a motor of high power that will run withminimum vibration and that produces smooth action. Thisis well shown by diagrams at Fig. 31. It should be re-membered that if an eight-cylinder engine will give fourexplosions per revolution of the fly-wheel, a twelve-cylindertype will give… … StartingCrank Oil Sump Engine Base Fig. 35.—The Hall-Scott Six-Cylinder Aviation Engine. degrees of crank travel apart in the case of the twelve-cylinder. For this reason, the cylinders of a twelve areusually separated by 60 degrees while the eight has theblocks spaced 90 degrees apart. The…
Airplanes
