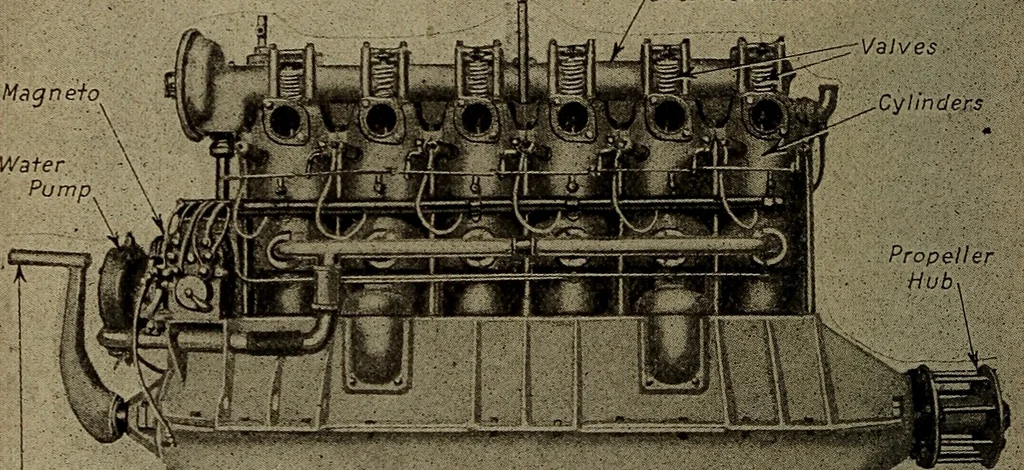

into Having a motor of high power that will run withminimum vibration and that produces smooth action. Thisis well shown by diagrams at Fig. 31. It should be re-membered that if an eight-cylinder engine^ will give fourexplosions per revolution of the fly-wheel, a twelve-cylindertype will give six… … StartingCrank *r Oil Sump T Engine Bc.se Fig. 35.—The Hall-Scott Six-Cylinder Aviation Engine. degrees of crank travel apart in the case of the twelve-cylinder. For this reason, the cylinders of a twelve areusually separated by 60 degrees while the eight has theblocks spaced 90 degrees apart. The…
