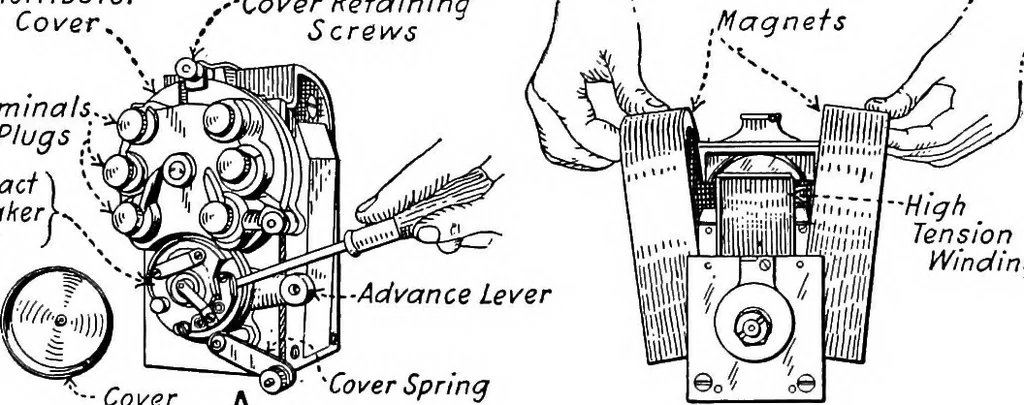

. The high-tension cur-rent is carried to the distributor by means of an insulatedblock with a spindle, at one end of which is a springbrush bearing directly on the winding, thus shortening Dixie Ignition Magneto 187 the path of the high-tension current and eliminating theuse of rubber spools and… … Contact \Breaker}-,Box ) \ ••■Cover AThe whole breaker mechanism is exposed bysimply turning/ the cover spring aside andremoving cover. A screw driver is the only _tool necessary to adjust the platinum points. HighTensionWinding After removing the cover themagnets can be taken off-exposingthe high…
