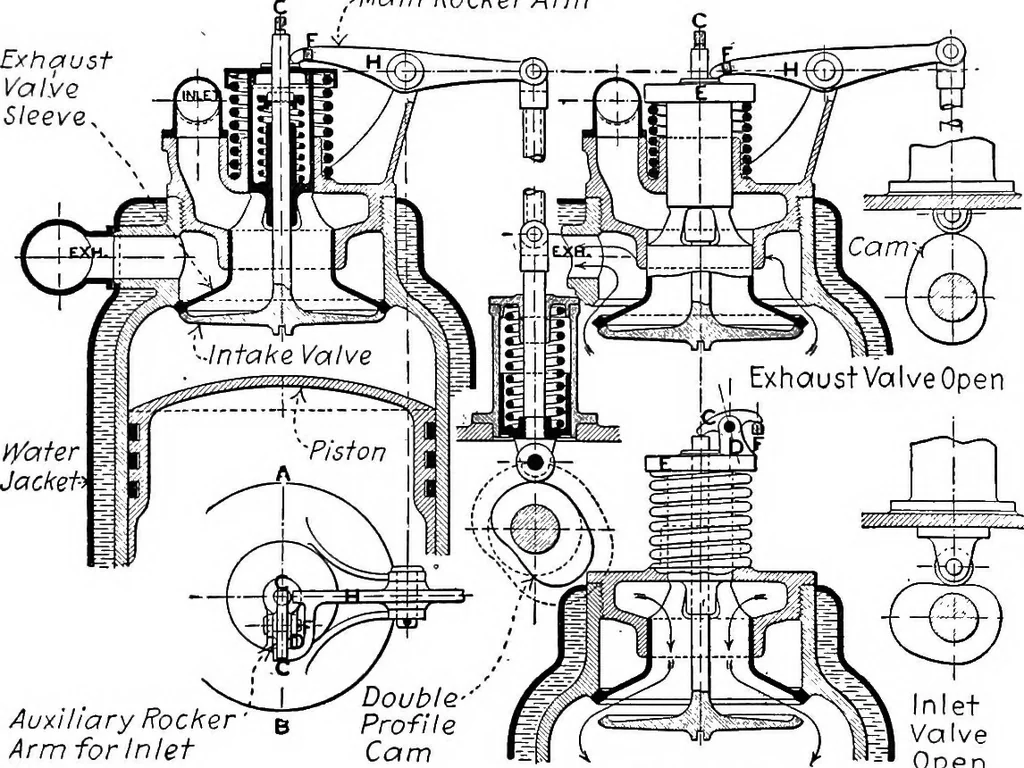

icted inpart section and no trouble will be experienced in under-standing the bevel pinion and gear drive from the crank- Concentric Valve Design 255 shaft to the overhead cam-shaft through a vertical coun-ter-shaft. A very direct valve action is used in theDuesenberg engines, one of which is shown… … , . .... Double- Auxiliary Rocker B Profile Arm for Inlet CamValve Section at A-B InletValveOpen Fig. 99.—Sectional Views Showing Arrangement of Novel Concentric ValveArrangement Devised by Panhard for Aerial Engines. The form shown at Fig. 99 shows an ingenious appli-cation of the…
