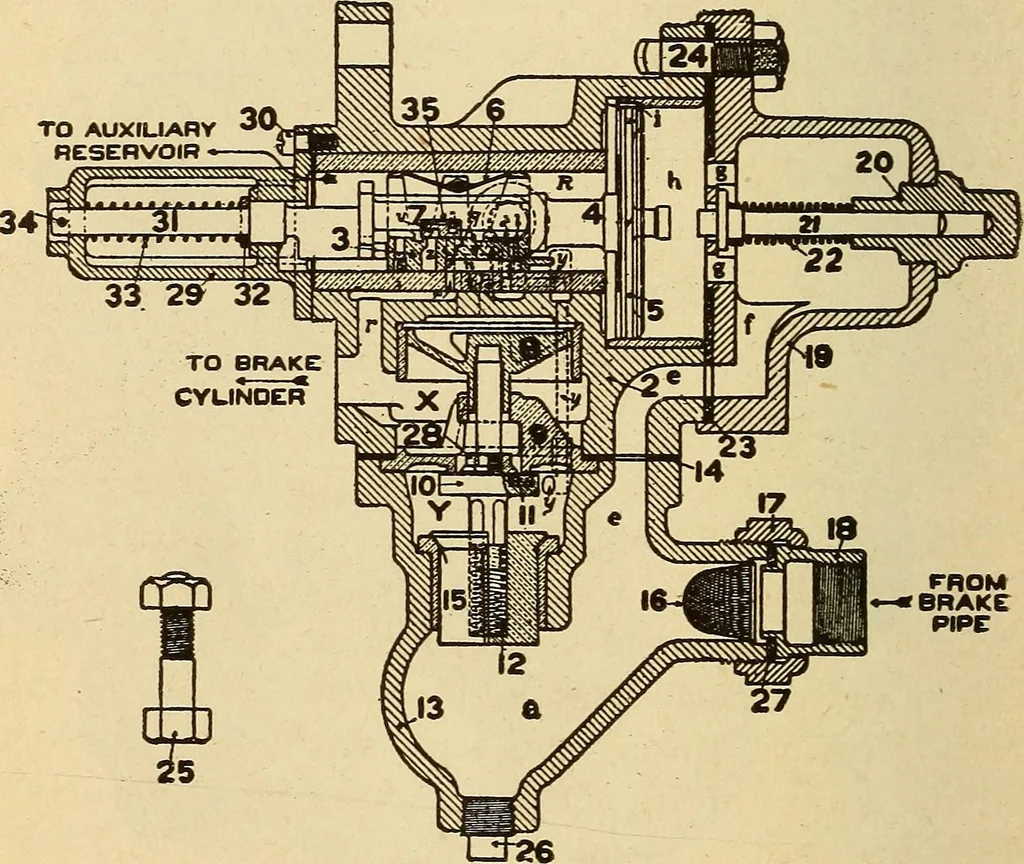

this valve, andthe names of the various parts are as follows: ^2^ LOCOMOTIVE ENGINEERING 2, Valve Body; 3, Slide Valve; 4, Piston; 5, Piston-Packing Ring; 6, Slide-Valve Spring; 7, GraduatingValve; 8, Emergency Piston; 9, Emergency-Valve Seat;10, Emergency Valve; 11, Emergency-Valve RubberSeat; 12,… … FIG. 324. THE K-2 TRIPLE VALVE 22, Graduating Spring; 23, Cylinder-Cap Gasket; 24,Bolt and Nut; 25, Triple-Valve Cap Screw; 26, DrainPlug; 27, Union Gasket; 28, Emergency-Valve Nut; 29,Retarding-Device Bracket; 30, Retarding-Device Screw;31, Retarding-Device Stem; ^2, Retarding-Device ET BRAKE…Locomotives
