Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 220

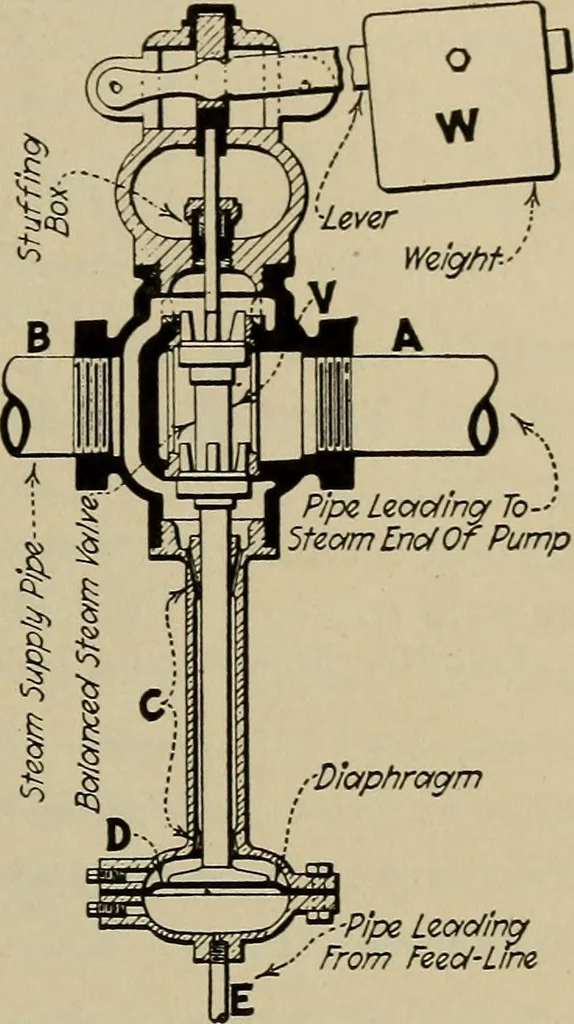

n theunder side of the diaphragm (D Fig. 211)and 100 lb. per sq. in. on the upper side.The weight W is set so as to overcome theforce of this difference in pressure of (110 — 100) or 10 lb. per sq. in.Therefore when the difference in pressure is a little less than 10 lb. persq. in., the weight… … ■Dhphracfr, ■Pipe LeadingFrom Feed-Line Fig. 211.—Sectional ElevationOf The Fulton Governor ForBoiler-Feed Pumps. [n £$& &*vs
Steam power plants · Pumping machinery
