Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 263

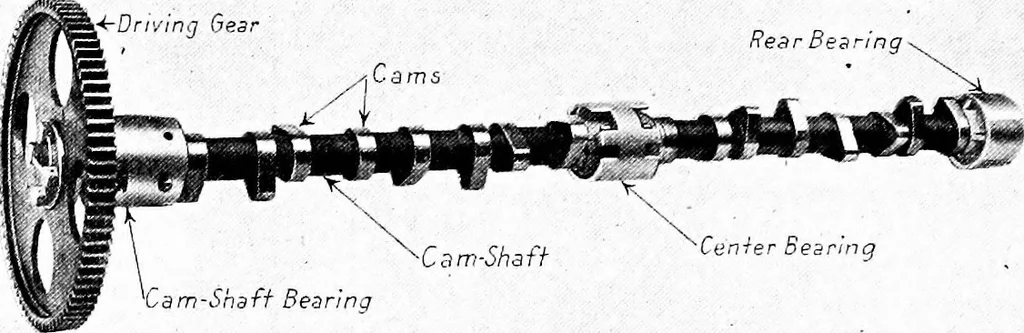

ection may be nsed to turn it. A typi-cal cam-shaft for an eight-cylinder V engine is shown atFig. 104. It will be seen that the sixteen cams are forgedintegrally with the shaft and that it is spur-gear driven.The cam-shaft drive of the Hall-Scott motor is shown atFig. 97. While gearing is more… … -Cam-Shaft ^Center Bearing Cam-Shaft Bearing Fig. 104.—Cam-Shaft of Thomas Airplane Motor Has Cams Forged Integ-ral. Note Split Cam-Shaft Bearings and Method of Gear Retention. tion, but the silent chain, which is in reality a link beltoperating over toothed pulleys, has demonstrated itsworth. The…
