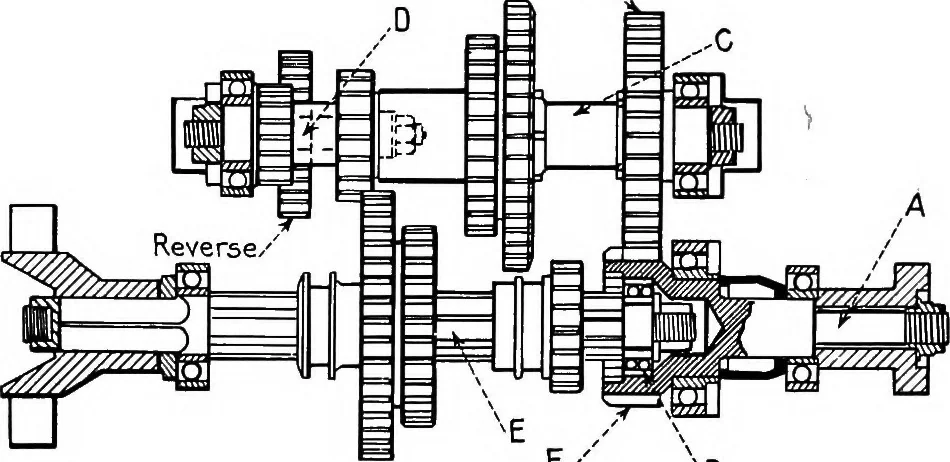

ssion. ShaftA is the main driving gear or clutch gear shaft, and isrotated by the power from the engine. Shaft A is themain drive shaft or sliding gear shaft (called thesplined shaft), from which power is transmitted through the propeller shaft to the driving axles and rear wheelsof the truck.… … F/ xg Fig. 19—Transmission Assembly, Sliding Gear Type except F and G are in mesh. It is to be noted that gearsF and G are always in mesh as they transmit the powerfrom shaft A to shaft C. Shaft D is the reverse gear shaft which carries thethird gear necessary to cause the shaft B to rotate in…
