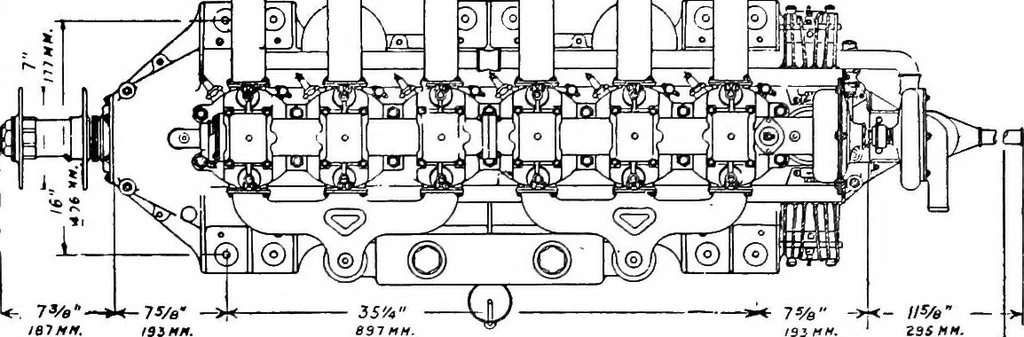

n 335 Fig. 152. CENSORED 336 Aviation Engines reproduced from the instruction book issued by the maker.Operating instructions which.are given should enable anygood mechanic to make a proper installation and to keepthe engine in good running condition. FUEL SYSTEM INSTALLATION Gasoline giving the… … ;/%■ — 23JWW. Fig. 153.—Plan View of Hall-Scott Type A-5 125 Horsepower AirplaneEngine, Showing Installation Dimensions. Calorimetric bomb test 20610 B. T. U. per pound. If thegasoline tank is placed in the fuselage below the level ofthe carburetor, a hand pump must be used to maintainair pressure…
