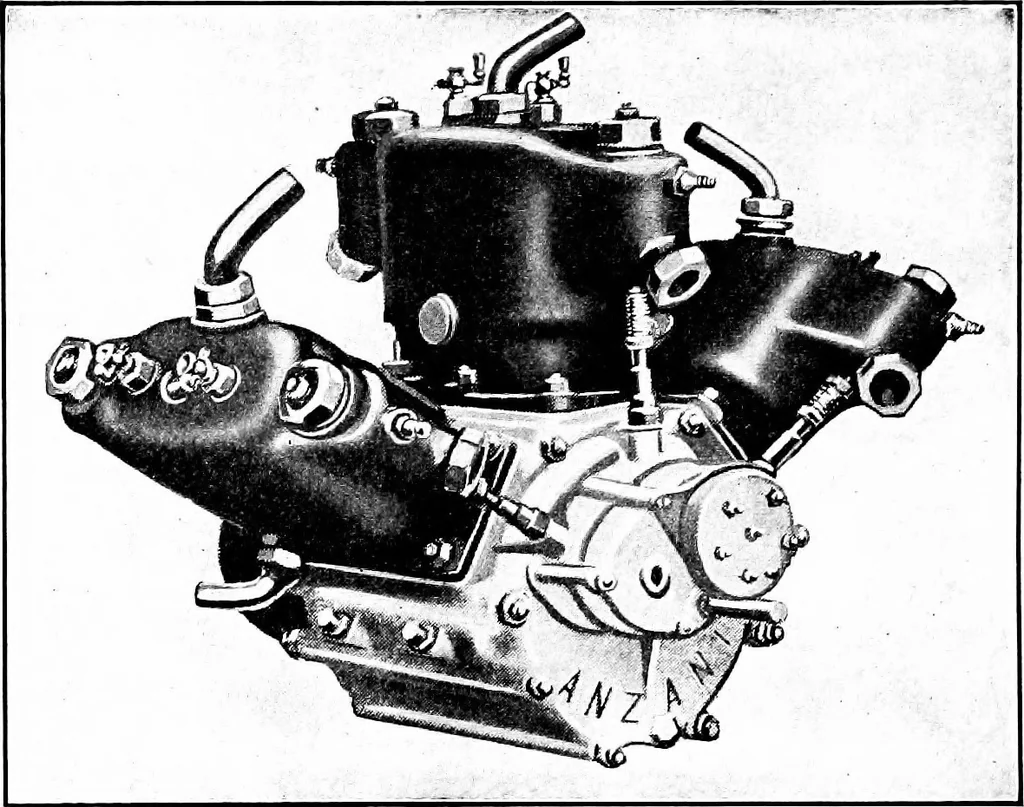

Poor Position toGet Full Throw and Get Out of the Way. Below, Correct Positionto Get Quick Turn Over of Crankshaft and Spring Away fromPropeller. 461 462 Aviation Engines that a double throw crank-shaft was used and while theexplosions were not evenly spaced the number of explo-sions obtained… … Fig. 191.—The Anzani Six-Cylinder Water-Cooled Aviation Engine. metrically arranged about the crank-case or 120 degreesapart. The balance is greatly improved by this arrange-ment and the power strokes occur at equal intervals of240 degrees of crank-shaft rotation. This method of con-struction is…
