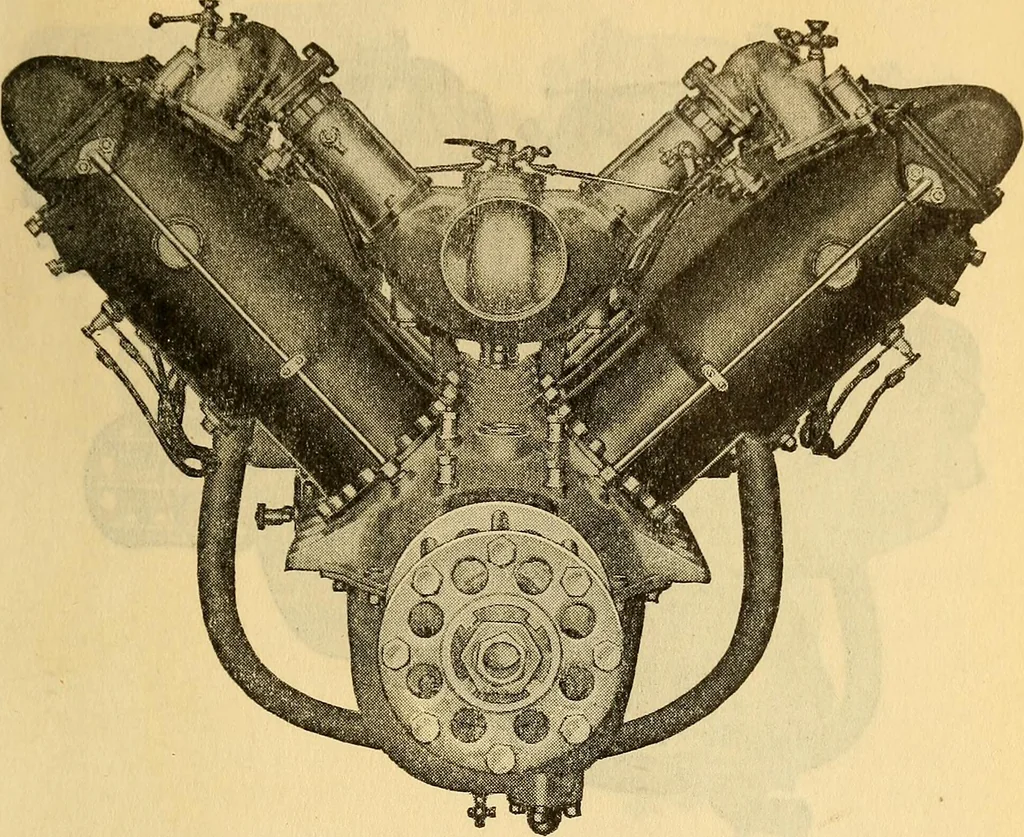

f each block and are directly operated bya single, super-imposed camshaft. The valves areTungsten Steel, with large diameter hollow stems,working in cast-iron bushings, provided at the upperends with case-hardened flat-headed adjusting screws(discs) upon which the cams are operated. To insureproper… … Plate 7Front view of engine. Ready adjustment of clearance between the adjustingscrews or discs and the cam contour is obtained by ser-rated washers. These washers are pressed upward bysprings and hold the adjusting screws in place whilethey permit easy turning by means of a special wrenchwhich…
