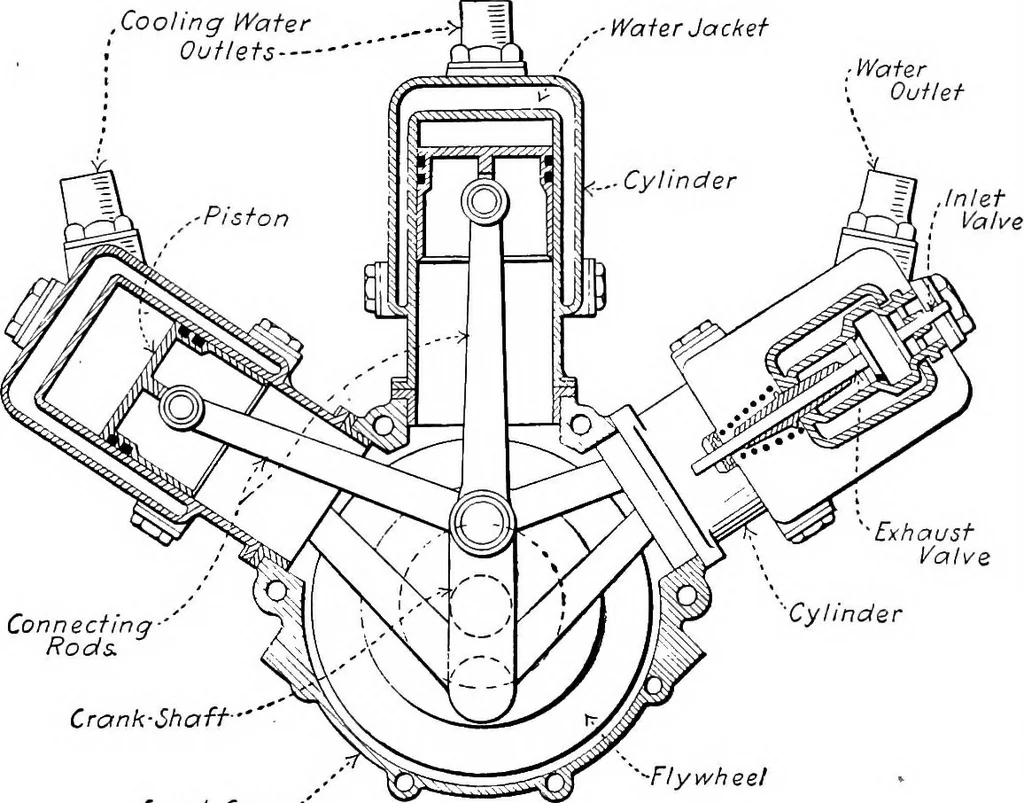

ordinary form of doublethrow crank-shaft with crank-pins separated by 180 de-grees, a six-cylinder radial engine is produced which runs Anzani Aviation Engines 463 very quietly and furnishes a steady output of power.The peculiarity of the construction of this engine is inthe method of grouping the… … Connecting-Rods. Crank-Shaft ExhaustValve Cylinder -Flywheel Crank Case-- Fig. 192.—Sectional View of Anzani Six-Cylinder Water-Cooled Aviation Engine. connecting rod big end with a shoe which consists of aportion of a hollow cylinder held against the crank-pinby split clamping rings. The…
