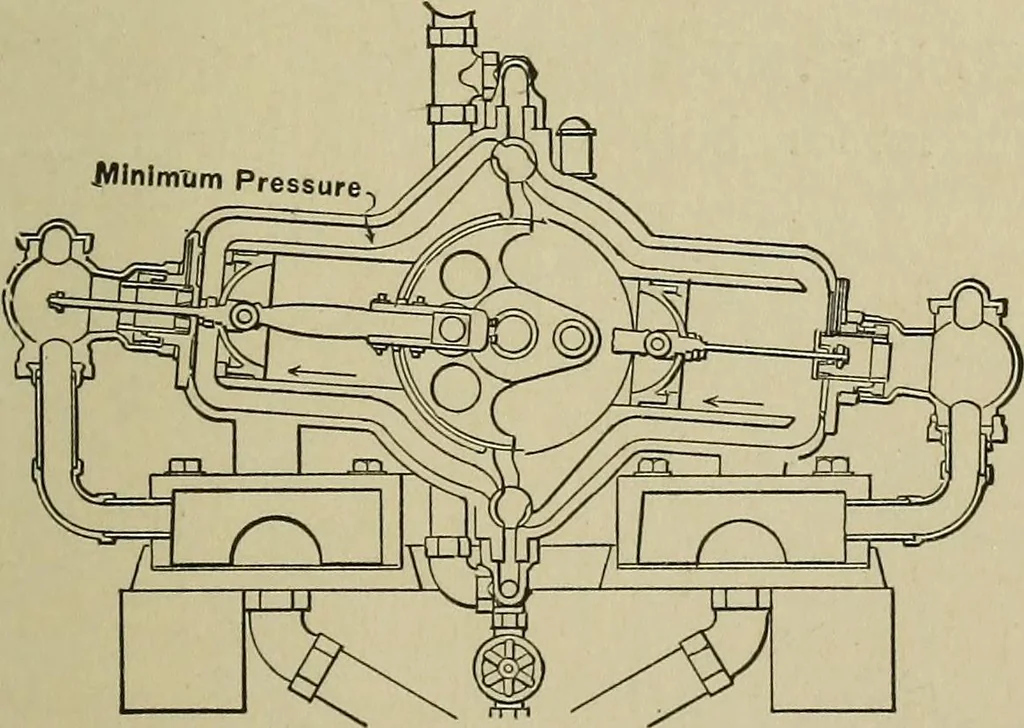

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 80
between pistons andpass to the opposite side ofthe same, driving them in-ward to the position asshown in the right end of cut. As soon as the inward stroke is com-pleted, the extension stem on pistons opens the end or exhaust valves,which remain open until the pistons complete their outward stroke… … -6 STEAM POWER APPLIANCE: 149. TRIPLE EXPANSION MARINE ENGINE. Type cfsteamer Minnesota. Proportion of cylinders, 1. 5, 15 in area ; s:roke,
