Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 485

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 485

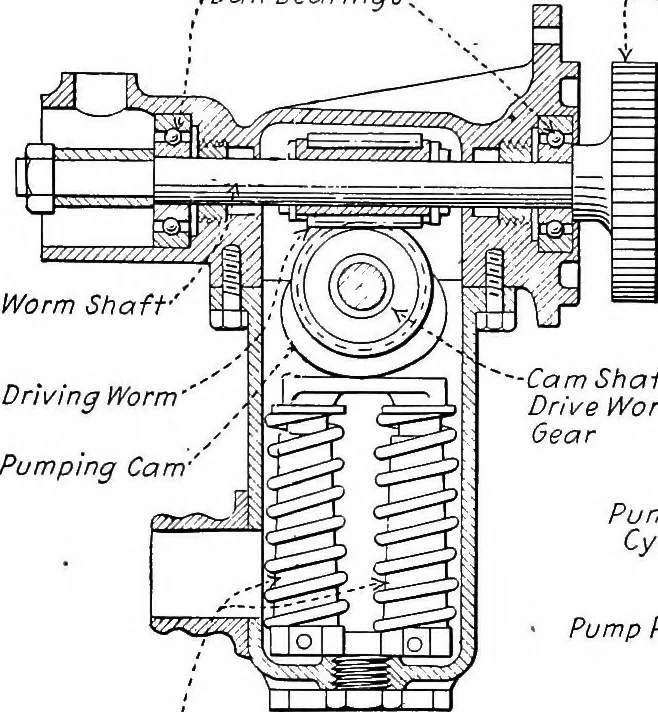

will run with theextremity of the gasoline pipe pushed into the hollow 484 Aviation Engines crank-shaft, speed being regulated entirely by increasingor decreasing the flow through the shut-off valve in thebase of the tank. Even under these conditions the motorhas been throttled down to run at 350… … Pump Drive 6ear Cam- ~-Cam ShaftDrive WormGear Pump _..-\ Cylinder- Pump Plunger- Plunger ReturnSprings
