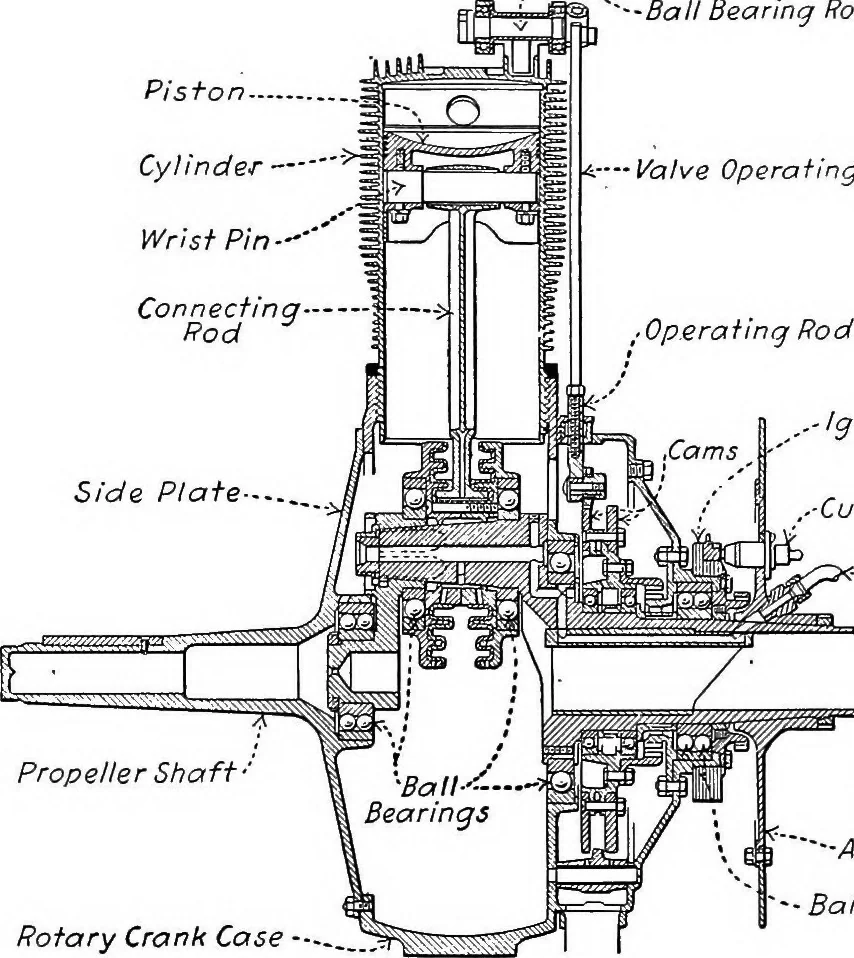

497 498 Aviation Engines The two main peculiarities of this motor are themethod of valve actuation by two large cams and thedistinctive crank-shaft and connecting rod big end con-struction. The connecting rods are provided with feetor shoes on the end which fit into grooves lined withbearing metal… … —Ball Bearing Rocker Shaft •Valve Operating Rod ; Operating Rod Plunger ,.- ignition Distributor ..-Current Supply Brush ■ Oil Rotary Crank Case Fixed ;Crank-Shaft- •Anchorage PlateS-- Ball Bearing Fig. 217.—Side Sectional View of Le Ehone Aviation Engine. revolving on ball bearings and which are…
