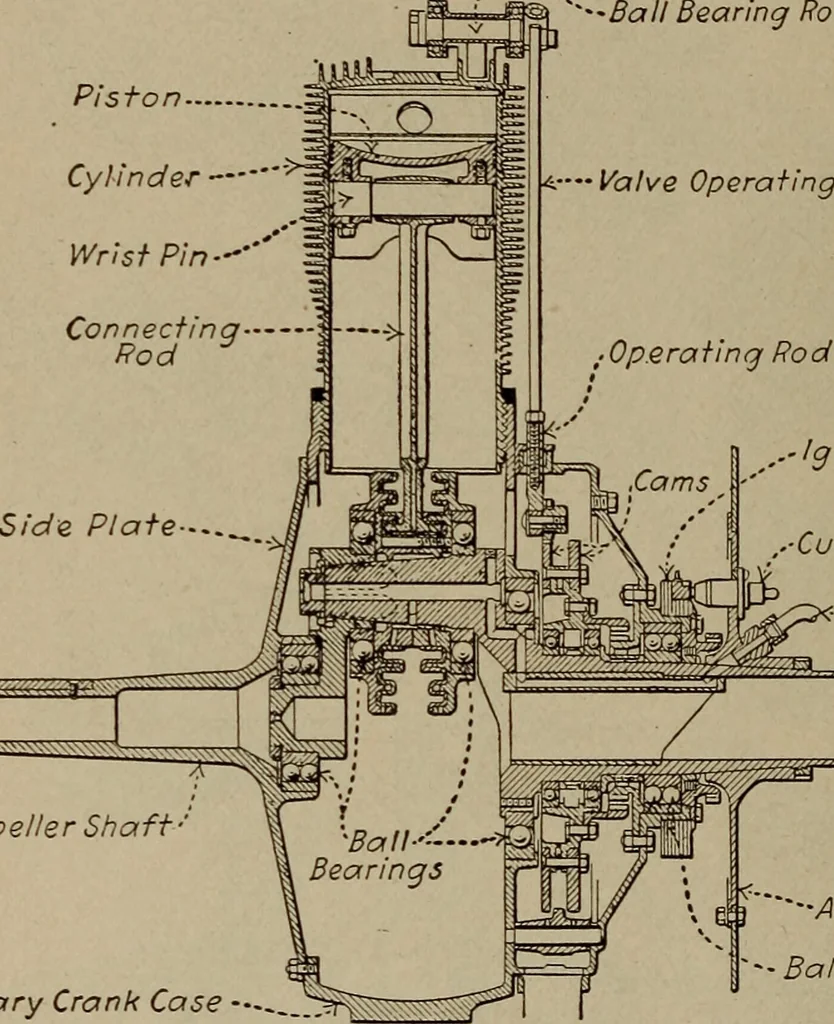

497 498 Aviation Engines The two main peculiarities of this motor are themethod of valve actuation by two large cams and thedistinctive crank-shaft and connecting rod big end con-struction. The connecting rods are provided with feetor shoes on the end which fit into grooves lined withbearing metal… … ^—Ball Bearing RockerShaft Valve Operating Rod • Operating Rod Plunger .-Ignition Distributor ■Current Supply Brush si i ,)hl Propeller Shaft Rotary Crank Case FixedCrank-Shaft •Anchorage Plates**■*- Ball Bearing Fig. 217.—Side Sectional View of Le Rhone Aviation Engine. revolving on ball bearings…
