Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 514

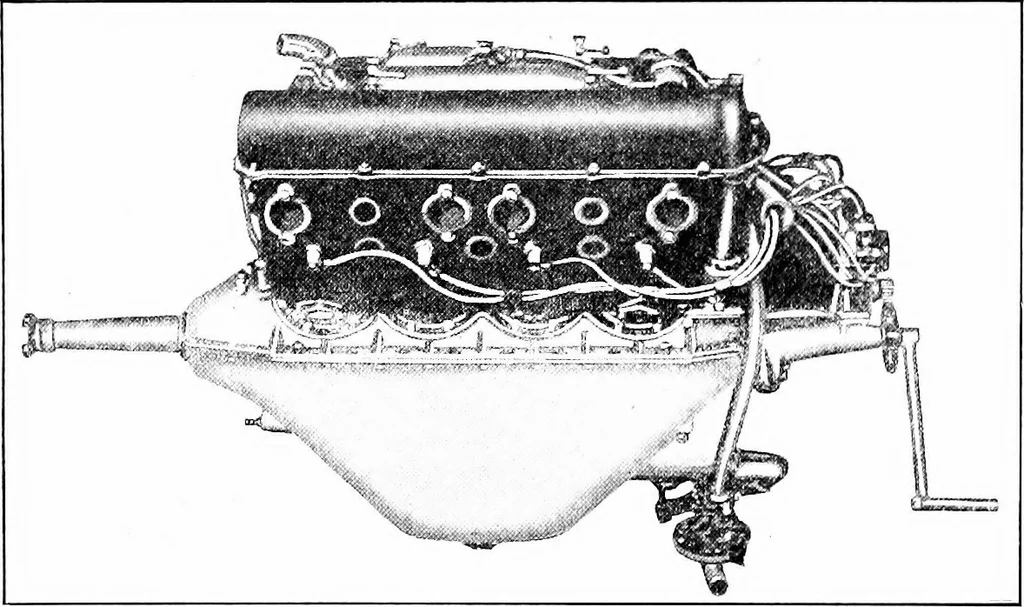

za En gin e )13 French standard propeller hub, which is keyed andlocked to the shaft. This makes possible instant changeof propellers. The case is in two halves divided on thecenter line of the crank-shaft, the bearings being fittedbetween the upper and lower sections. The lower halfis deep,… … Fig. 230.—The Simplex Model A Hispano-Suiza Aviation Engine, a Very Successful Form. working in cast iron bushings. They are directly operatedby a single hollow cam-shaft located over the valves. Thecam-shafts are driven from the crank-shaft by verticalshafts and bevel gears. The cam-shafts, cams…
Airplanes
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
