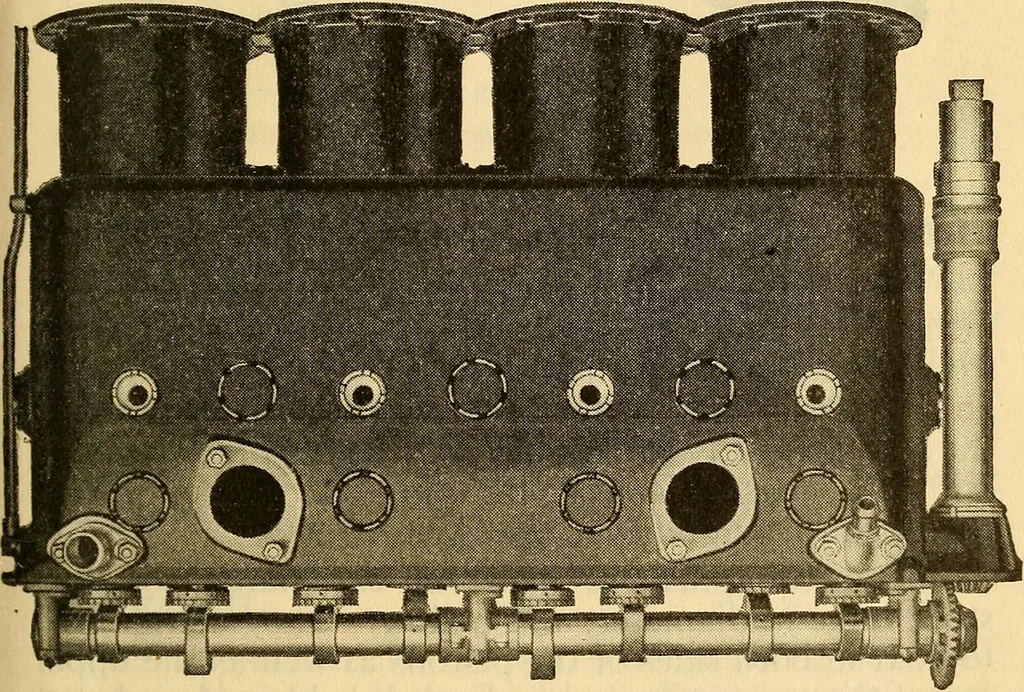

al cylinders are steel forgings, heat-treated, machined and threaded on the outside. Thesesteel sleeves are flanged at the bottom and closed at thetop, this surface being flat, providing for the two valveseats. The cylinders are screwed into the cast-alumi-num cylinder blocks which form the water… … Plate 1Cylinder, steel sleeve, vertical shaft and camshaft assembly 31 HISPANO — SU Z A
