Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 67

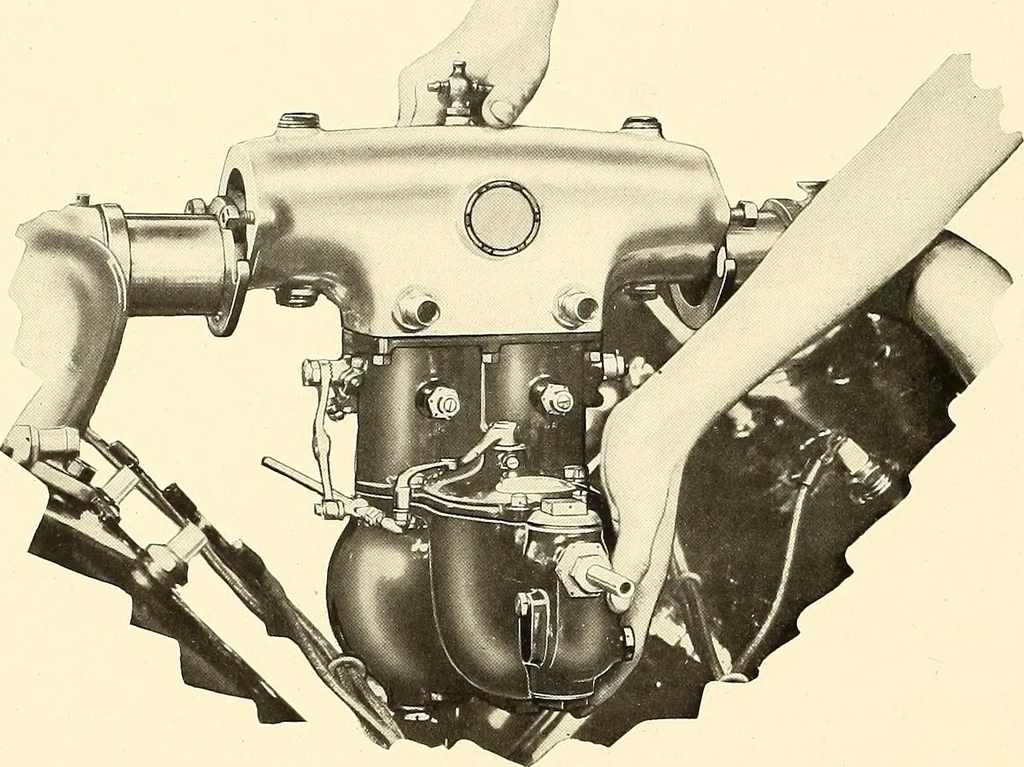

ing. Send the carburetorto carburetor department for cleaning. Instructions forcarburetor overhaul are given on page 7c>. 3. Remove all spark plugs. 4. Remove magneto distributors and wire manifoldwith all wires intact. 5. Remove intake manifolds from cylinder blocks,leaving gaskets and nuts on… … Lifting out carburetor coupling till the outer sleeve disengages with the gearsand then lift off magnetos. For model A magneto removal see page 47. 7. Take off magneto bracket by removing the nutson the circular flange holding the bracket to the crank-case. The bracket can be loosened without…
Airplanes
