Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 529

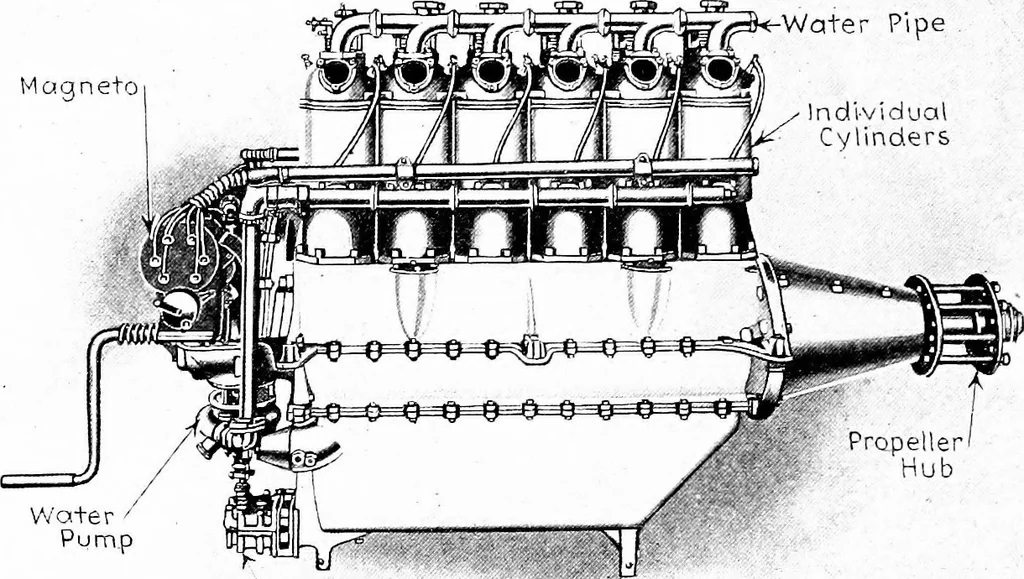

528 Aviation Engines motor are made of the highest grades of steel obtainableas are the studs, nuts and bolts. The upper and lowerparts of crank-case are made of composition aluminumcasting. Lower crank-case is made of high grade alu-minum composition casting and is bolted directly to theupper… … PropellerHub Water Pump Oil Pump Fig. 236.—The Six-Cylinder Aeromarine Engine. vided if needed to meet greater endurance requirements.Oil is forced under pressure to all bearings by means ofhigh-pressured duplex-geared pumps. One side of thispump delivers oil under pressure to all the…
